Mixture Formation -- E350 (211.256)
>>
Basic Knowledge
>>
Motor electronics (ME-SFI) fuel injection and ignition system function diagram - GF07.61-P-0001-02V
Motor electronics (ME-SFI) fuel injection and ignition system function diagram - GF07.61-P-0001-02V
Shown on engine 272.963 in model 171

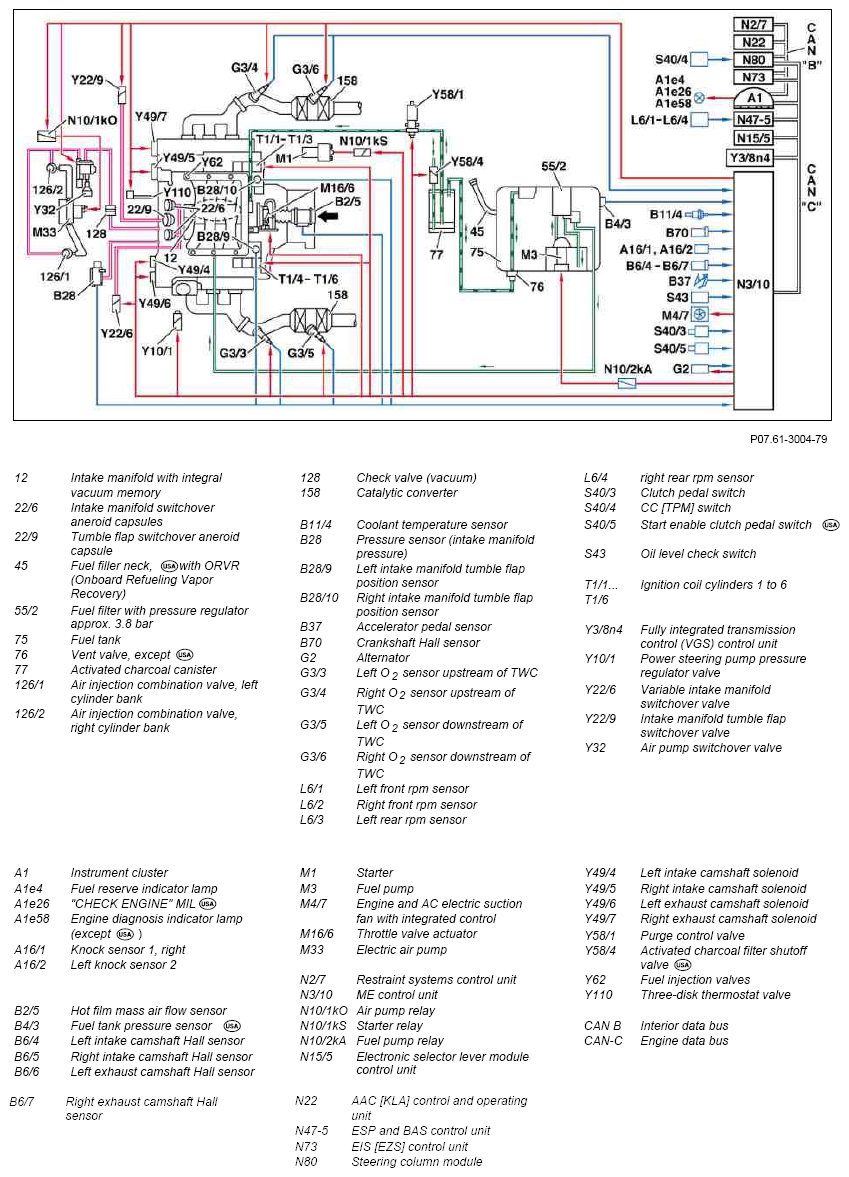

Fig 1: Motor Electronics (ME-SFI) Fuel Injection And Ignition System Function Diagram
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
