Motor electronics (ME) fuel injection and ignition system control unit, output signals - GF07.61-P-0001-07V

Shown on engine 272 in model 203

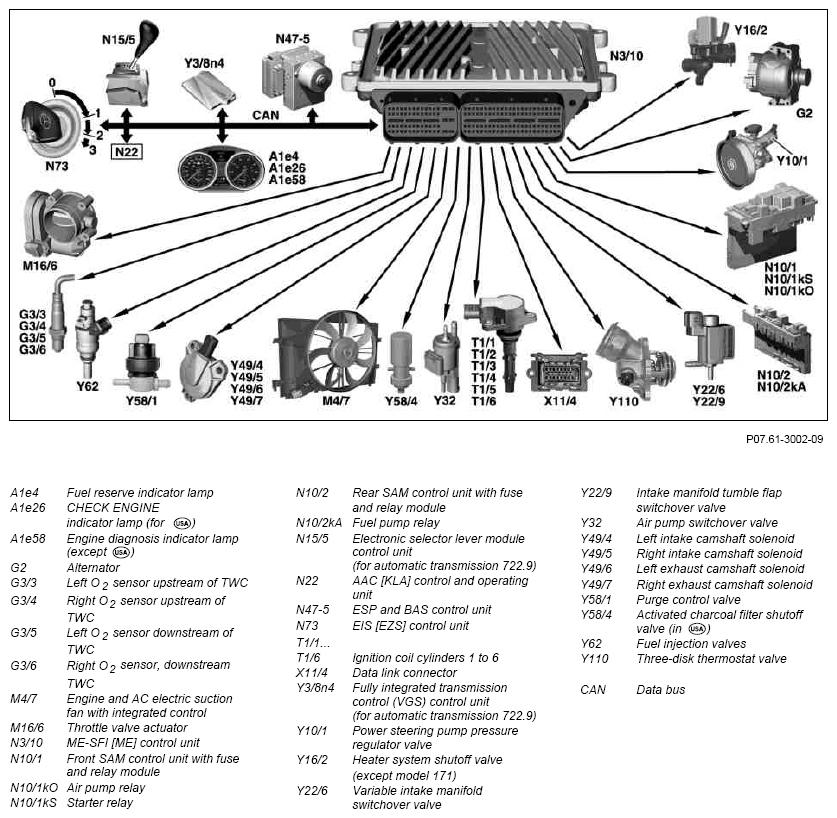

Fig 1: Motor Electronics Fuel Injection And Ignition System Control Unit Output Signals Diagram
G07282046Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
