Motor Electronics (ME-SFI) for fuel injection and ignition system arrangement of components - GF07.61-P-0001-01VA

Shown on ENGINE 272

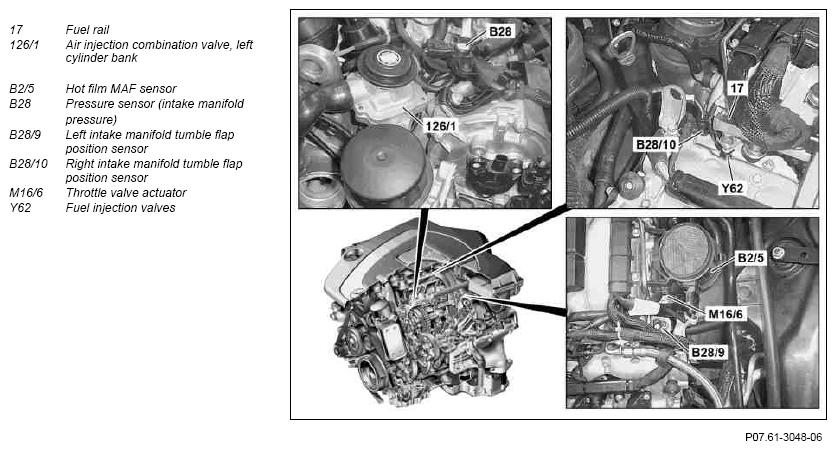

Fig 1: Identifying Motor Electronics For Fuel Injection And Ignition System Components (1 Of 4)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on ENGINE 272

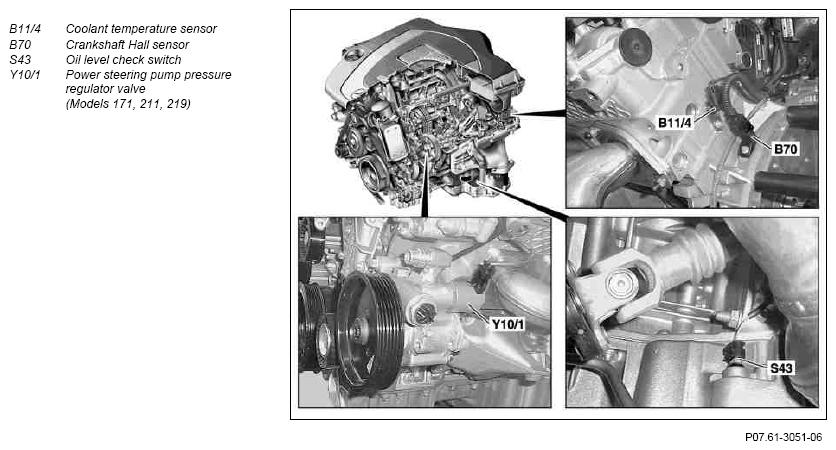

Fig 2: Identifying Motor Electronics For Fuel Injection And Ignition System Components (2 Of 4)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on ENGINE 272

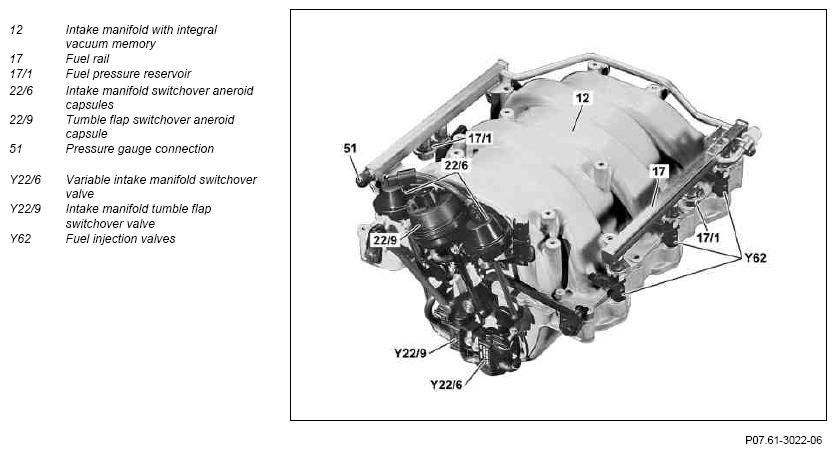

Fig 3: Identifying Motor Electronics For Fuel Injection And Ignition System Components (3 Of 4)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on ENGINE 272

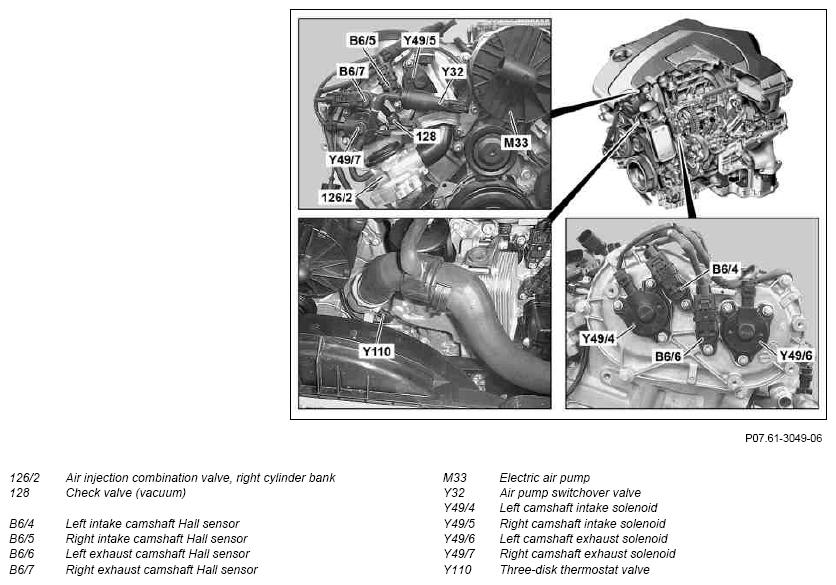

Fig 4: Identifying Motor Electronics For Fuel Injection And Ignition System Components (4 Of 4)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on ENGINE 273

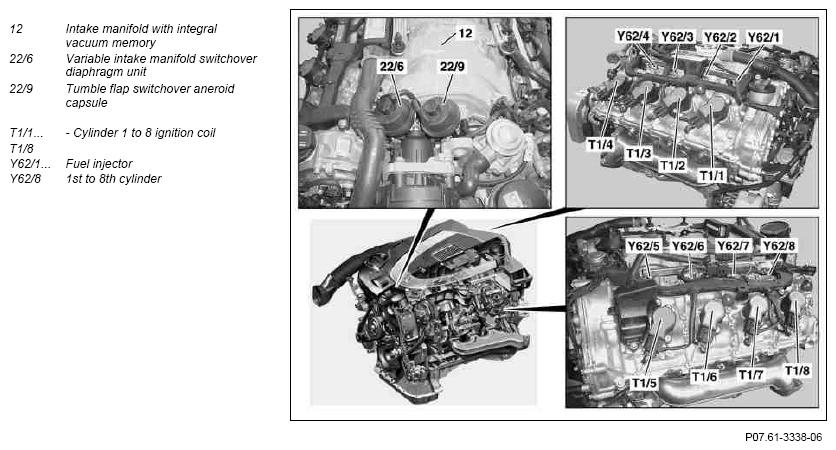

Fig 5: Identifying Motor Electronics For Fuel Injection And Ignition System Components - Shown On Engine 273

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on engine 272

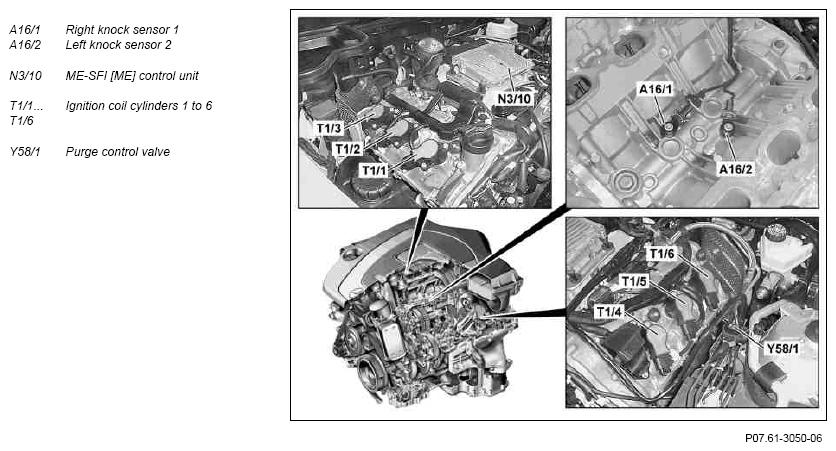

Fig 6: Identifying Intake Manifold With Integral Vacuum Memory And Fuel Rail

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

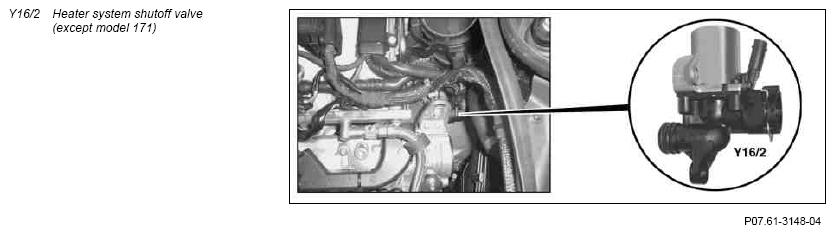

Fig 7: Identifying Heater System Shutoff Valve

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
