ME-SFI ignition ON, function - GF07.61-P-3005V

ENGINE 272.920 in MODEL 203 up to Model Year 8

ENGINE 272.922 in MODEL 211

ENGINE 272.940 in MODEL 203 up to Model Year 8

ENGINE 272.941 in MODEL 203 up to Model Year 8

ENGINE 272.942 in MODEL 171 up to Model Year 8

ENGINE 272.943 in MODEL 211, 219

ENGINE 272.944 in MODEL 211

ENGINE 272.945 in MODEL 251 up to Model Year 8

ENGINE 272.946 in MODEL 221 up to Model Year 8

ENGINE 272.960 in MODEL 203 up to Model Year 8

ENGINE 272.963 in MODEL 171 up to Model Year 8

ENGINE 272.964 in MODEL 211, 219

ENGINE 272.965 in MODEL 221 up to Model Year 8

ENGINE 272.966 in MODEL 230 up to Model Year 8

ENGINE 272.967 in MODEL 164, 251 up to Model Year 8

ENGINE 272.970 in MODEL 203 up to Model Year 8

ENGINE 272.972 in MODEL 211

ENGINE 272.975 in MODEL 221 up to Model Year 8

ENGINE 273.922 in MODEL 221 up to Model Year 8

ENGINE 273.923 in MODEL 164 up to Model Year 8

ENGINE 273.924 in MODEL 221 up to Model Year 8

ENGINE 273.960 in MODEL 211, 219

ENGINE 273.961 in MODEL 216, 221 up to Model Year 8

ENGINE 273.962 in MODEL 211

ENGINE 273.963 in MODEL 164, 251 up to Model Year 8

ENGINE 273.965 in MODEL 230 up to Model Year 8

ENGINE 273.967 in MODEL 209

ENGINE 273.968 in MODEL 221 up to Model Year 8

ENGINE 272.940 in MODEL 209

ENGINE 272.960 in MODEL 209

Shown on engine 272.963 in model 171

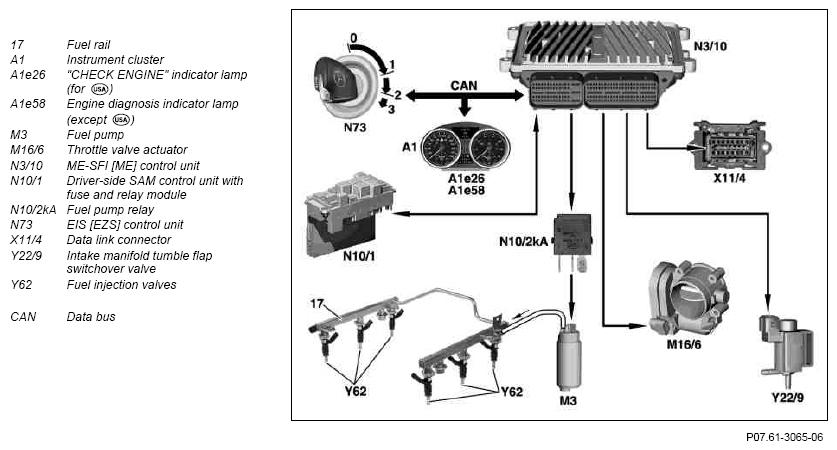

Fig 1: ME-SFI Ignition On Function Diagram

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Functions in the case of ignition ON:

The gasoline, injection and ignition system (in the ME-SFI [ME] control unit) is supplied with a voltage.
To protect against cylinder flooding, the fuel pump is actuated for approx. 5 seconds (only for first "Ignition ON")
The engine diagnosis indicator lamp or CHECK ENGINE lights up in the instrument cluster (lamp check).
Data exchange with the EIS [EZS] control unit (terminal 50 signal and drive authorization system) takes place via the CAN data bus.
The fault memory can be read out and erased via the data link connector.
Correction programming or diagnosis can be undertaken using STAR DIAGNOSIS via the data link connector.
The throttle valve actuator checks its return spring (via the position of the throttle valve) may lead to a positioner adaptation.
The tumble flap switchover is actuated and a check is performed to ensure that the end positions have been reached.

Voltage supply of ME-SFI control unit, function	Model 164, 251	GF07.61-P-5001VA
	Model 171, 211, 219	GF07.61-P-5001V
	Model 203, 209	GF07.61-P-5001VB
	Model 216, 221	GF07.61-P-5001VC
	Model 230	GF07.61-P-5001VD
ME fuel supply, function		GF07.61-P-3004V
ME tumble flap switchover function		GF07.61-P-4017V
Diagnosis fault memory, ME-SFI function		GF07.61-P-2004V
