ME fuel reserve signal, function - GF07.61-P-4024V

ENGINE 272.920 in MODEL 203 up to Model Year 8

ENGINE 272.922 in MODEL 211

ENGINE 272.940 in MODEL 203 up to Model Year 8

ENGINE 272.941 in MODEL 203 up to Model Year 8

ENGINE 272.942 in MODEL 171 up to Model Year 8

ENGINE 272.943 in MODEL 211, 219

ENGINE 272.944 in MODEL 211

ENGINE 272.945 in MODEL 251 up to Model Year 8

ENGINE 272.946 in MODEL 221 up to Model Year 8

ENGINE 272.960 in MODEL 203 up to Model Year 8

ENGINE 272.963 in MODEL 171 up to Model Year 8

ENGINE 272.964 in MODEL 211, 219

ENGINE 272.965 in MODEL 221 up to Model Year 8

ENGINE 272.966 in MODEL 230 up to Model Year 8

ENGINE 272.967 in MODEL 164, 251 up to Model Year 8

ENGINE 272.970 in MODEL 203 up to Model Year 8

ENGINE 272.972 in MODEL 211

ENGINE 272.975 in MODEL 221 up to Model Year 8

ENGINE 273.922 in MODEL 221 up to Model Year 8

ENGINE 273.923 in MODEL 164 up to Model Year 8

ENGINE 273.924 in MODEL 221 up to Model Year 8

ENGINE 273.960 in MODEL 211, 219

ENGINE 273.961 in MODEL 216, 221 up to Model Year 8

ENGINE 273.962 in MODEL 211

ENGINE 273.963 in MODEL 164, 251 up to Model Year 8

ENGINE 273.965 in MODEL 230 up to Model Year 8

ENGINE 273.967 in MODEL 209

ENGINE 273.968 in MODEL 221 up to Model Year 8

ENGINE 272.940 in MODEL 209

ENGINE 272.960 in MODEL 209

Shown on Engine 272.963 in Model 171

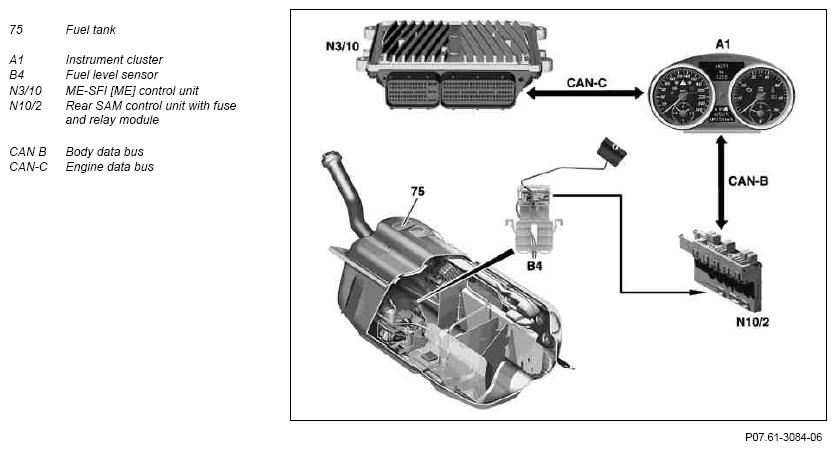

Fig 1: ME Fuel Reserve Signal Function Diagram

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

This signal serves as supplemental information for the ME control unit for detection of combustion misfires through fuel starvation.

The information about the fuel level is transferred to the instrument cluster via CAN. From there, the information reaches the ME-SFI [ME] control unit via CAN.

If the fuel reserve warning light is flashing, the purge system has a gross leak (tank lid missing).

If the fuel tank is filled to less than approx. 1/4 or to more than 3/4, the leak test of the fuel system is suppressed. A test for major leakage is still performed.

ME-SFI [ME] control unit, component description	GF07.61-P-6000V
Component description of fuel level sensor	GF47.10-P-2010V
