Pump out fuel - AR47.10-P-4001-01TZV
Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.
| AR47.10-P-4001-01TZV | Pump out fuel | ||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel and risk of injury to eyes and skin caused by contact with fuel | No fire, sparks, open flames or smoking. Pour fuels only into suitable and appropriately marked containers. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A |
FUEL TANK
| Number | Designation | Model 211 | |
|---|---|---|---|
| BA47.10-P-1009-01E | Nut, lock ring to fuel tank | Nm | 6 |
- Connect ground cable of tank drainage device with vehicle ground point.
The manufacturer's operating instructions and notes must be heeded.
- Slide extraction hose through filler neck into fuel tank and pump fuel out of right-hand chamber.
Use the following extraction hose only, as otherwise the non-return throttle valve will be damaged.
Extraction hose:
Plank GmbH (www.plankgmbh.de)
Extraction hose 1700094
- Remove cover of left service opening.
- Detach electrical connectors from filter.

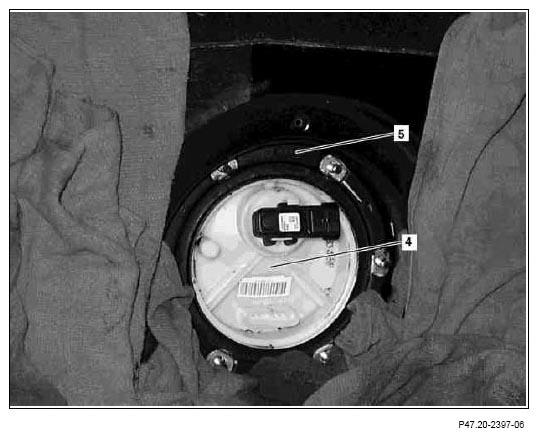

- Unscrew ring nuts (5) and remove ring (5).
- Seal large area of left service opening with absorbent material.

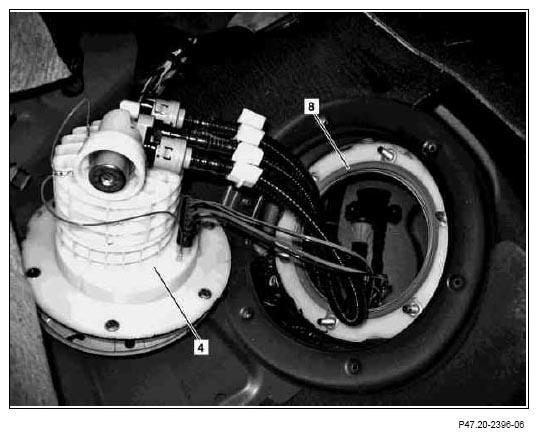

- Carefully release filter (4) and place down at rear.
- Slide extraction hose through filler neck into fuel tank and pump fuel out of left-hand chamber.
- Replace compression ring (8).
- Install filter (4).
- Install ring (5) and unscrew nuts.
- Remove absorbent material.
- Connect electrical connectors onto filter.
- 15 Install cover of left service opening.
- 16 Remove tank drainage device
