Fuel pump relay, component description - GF47.20-P-2010V

ENGINE 272.920 in MODEL 203 up to Model Year 8

ENGINE 272.922 in MODEL 211

ENGINE 272.940 in MODEL 203 up to Model Year 8

ENGINE 272.941 in MODEL 203 up to Model Year 8

ENGINE 272.942 in MODEL 171 up to Model Year 8

ENGINE 272.943 in MODEL 211, 219

ENGINE 272.944 in MODEL 211

ENGINE 272.945 in MODEL 251 up to Model Year 8

ENGINE 272.946 in MODEL 221 up to Model Year 8

ENGINE 272.960 in MODEL 203 up to Model Year 8

ENGINE 272.963 in MODEL 171 up to Model Year 8

ENGINE 272.964 in MODEL 211, 219

ENGINE 272.965 in MODEL 221 up to Model Year 8

ENGINE 272.966 in MODEL 230 up to Model Year 8

ENGINE 272.967 in MODEL 164, 251 up to Model Year 8

ENGINE 272.970 in MODEL 203 up to Model Year 8

ENGINE 272.972 in MODEL 211

ENGINE 272.975 in MODEL 221 up to Model Year 8

ENGINE 273.922 in MODEL 221 up to Model Year 8

ENGINE 273.923 in MODEL 164 up to Model Year 8

ENGINE 273.924 in MODEL 221 up to Model Year 8

ENGINE 273.960 in MODEL 211,219

ENGINE 273.961 in MODEL 216, 221 up to Model Year 8

ENGINE 273.962 in MODEL 211

ENGINE 273.963 in MODEL 164, 251 up to Model Year 8

ENGINE 273.965 in MODEL 230 up to Model Year 8

ENGINE 273.967 in MODEL 209

ENGINE 273.968 in MODEL 221 up to Model Year 8

ENGINE 272.940 in MODEL 209

ENGINE 272.960 in MODEL 209

Shows model 171

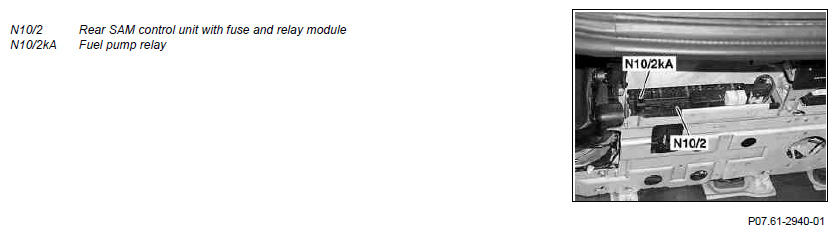

Fig 1: Identifying Rear Sam Control Unit With Fuse And Relay Module (N10/2) And Fuel Pump Relay (N10/2KA)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Location

Model 171: at the front of the luggage compartment
Model 203, 209, 211, 219: at the left in the luggage compartment
Model 164: at the right in the load compartment.
Model 251: at the right in the spare wheel well
Model 221: under the through-loading feature/ski bag
Model 230: at the passenger-side fuse and relay module.

Task

The fuel pump relay actuates the fuel pump with voltage via a fuse.

Illustrated on model 171, 203, 209, 211, 219

Function

When actuated by the motor electronics control unit, with a ground signal at circuit 86, the relay closes its power contact. When the power contact is closed the fuel pump is connected to circuit 30 (B+) via circuit 87.

To actuate the fuel pump relay and bridge terminal 30 and 87.

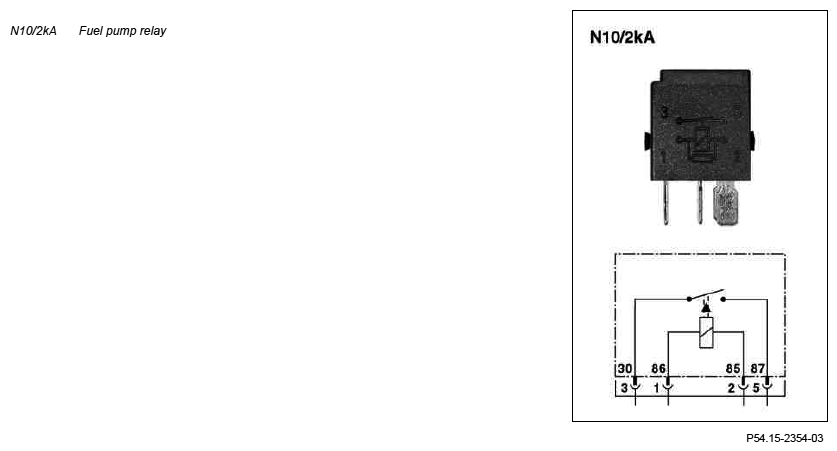

Fig 2: Fuel Pump Relay (N10/2KA) Circuit

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
