Component description for the oil level check switch - GF18.40-P-4114V

ENGINE 272.920 in MODEL 203 up to Model Year 8

ENGINE 272.922 in MODEL 211

ENGINE 272.940 in MODEL 203 up to Model Year 8

ENGINE 272.941 in MODEL 203 up to Model Year 8

ENGINE 272.942 in MODEL 171 up to Model Year 8

ENGINE 272.943 in MODEL 211, 219

ENGINE 272.944 in MODEL 211

ENGINE 272.945 in MODEL 251 up to Model Year 8

ENGINE 272.946 in MODEL 221 up to Model Year 8

ENGINE 272.960 in MODEL 203 up to Model Year 8

ENGINE 272.963 in MODEL 171 up to Model Year 8

ENGINE 272.964 in MODEL 211, 219

ENGINE 272.965 in MODEL 221 up to Model Year 8

ENGINE 272.966 in MODEL 230 up to Model Year 8

ENGINE 272.967 in MODEL 164, 251 up to Model Year 8

ENGINE 272.970 in MODEL 203 up to Model Year 8

ENGINE 272.972 in MODEL 211

ENGINE 272.975 in MODEL 221 up to Model Year 8

ENGINE 272.985 in MODEL 211, 219

ENGINE 273.922 in MODEL 221 up to Model Year 8

ENGINE 273.923 in MODEL 164 up to Model Year 8

ENGINE 273.924 in MODEL 221 up to Model Year 8

ENGINE 273.960 in MODEL 211, 219

ENGINE 273.961 in MODEL 216, 221 up to Model Year 8

ENGINE 273.962 in MODEL 211

ENGINE 273.963 in MODEL 164, 251 up to Model Year 8

ENGINE 273.965 in MODEL 230 up to Model Year 8

ENGINE 273.967 in MODEL 209

ENGINE 273.968 in MODEL 221 up to Model Year 8

ENGINE 272.940 in MODEL 209

ENGINE 272.960 in MODEL 209

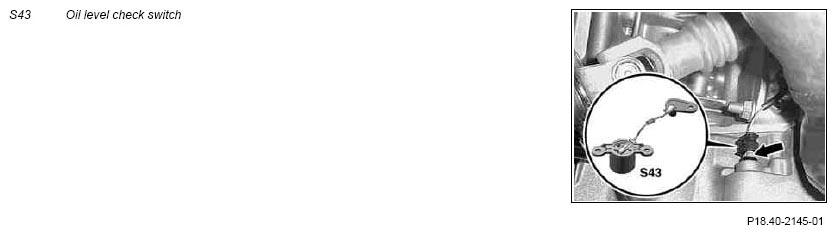

Fig 1: Locating Oil Level Check Switch

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

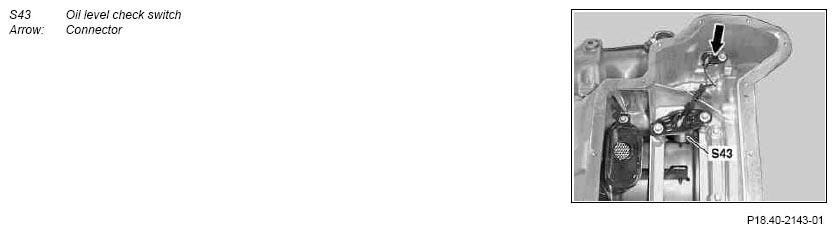

Fig 2: Locating Oil Level Check Switch & Connector

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Location

The oil level check switch is in the oil pan; the outer connector is located on the oil pan.

Task

To recognize reaching a minimum oil level in the oil pan.

Design

In the oil pan there is a dry-reed contact mounted in the float chamber and a float with ring magnet. A short line leads to the connector on the side on the oil pan.

Function

When the oil level is adequate the contact to engine ground is closed. If the switch opens due to oil starvation then this is recognized by the ME-SFI [ME] control unit and a message sent over the CAN to the instrument cluster.
