Component description for the heating system shutoff valve - GF20.00-P-2200V

ENGINE 272.920 in MODEL 203 up to Model Year 8

ENGINE 272.922 in MODEL 211

ENGINE 272.940 in MODEL 203 up to Model Year 8

ENGINE 272.941 in MODEL 203 up to Model Year 8

ENGINE 272.943 in MODEL 211, 219

ENGINE 272.944 in MODEL 211

ENGINE 272.945 in MODEL 251 up to Model Year 8

ENGINE 272.946 in MODEL 221 up to Model Year 8

ENGINE 272.960 in MODEL 203 up to Model Year 8

ENGINE 272.964 in MODEL 211, 219

ENGINE 272.965 in MODEL 221 up to Model Year 8

ENGINE 272.966 in MODEL 230 up to Model Year 8

ENGINE 272.967 in MODEL 164, 251 up to Model Year 8

ENGINE 272.970 in MODEL 203 up to Model Year 8

ENGINE 272.972 in MODEL 211

ENGINE 272.975 in MODEL 221 up to Model Year 8

ENGINE 272.985 in MODEL 211, 219

ENGINE 273.922 in MODEL 221 up to Model Year 8

ENGINE 273.923 in MODEL 164 up to Model Year 8

ENGINE 273.924 in MODEL 221 up to Model Year 8

ENGINE 273.960 in MODEL 211, 219

ENGINE 273.961 in MODEL 216, 221 up to Model Year 8

ENGINE 273.962 in MODEL 211

ENGINE 273.963 in MODEL 164, 251 up to Model Year 8

ENGINE 273.965 in MODEL 230 up to Model Year 8

ENGINE 273.967 in MODEL 209

ENGINE 273.968 in MODEL 221 up to Model Year 8

ENGINE 272.940 in MODEL 209

ENGINE 272.960 in MODEL 209

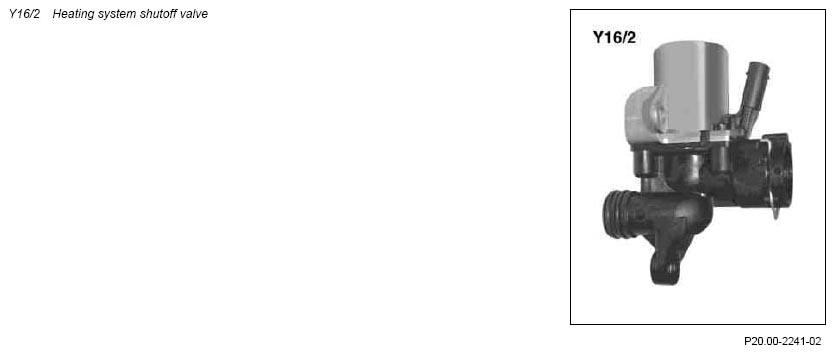

Fig 1: Identifying Heating System Shutoff Valve

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Location

The heating system shutoff valve is located behind the left cylinder bank at the coolant outlet of the engine.

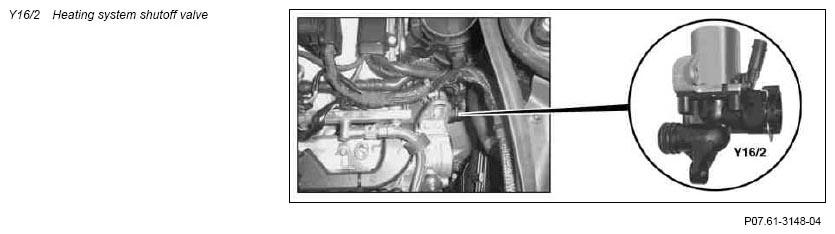

Fig 2: Locating Heating System Shutoff Valve

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Task

To rapidly warm up the engine following a cold start, locks the coolant circuit to the heat exchangers. When the vehicle heater is switched on, the valve is always open.

Function

The heating system shutoff valve is actuated by the ME control unit via a ground signal. The valve is opened without a current. The coil resistance at room temperature is approx. 12 Ω.
