Electrical System, Equipment & Instructions -- Basic Knowledge -- E350 (211.256)
>>
Basic Knowledge
>>
Parktronic system (PTS), location of components - GF54.65-P-0001-02T
Parktronic system (PTS), location of components - GF54.65-P-0001-02T

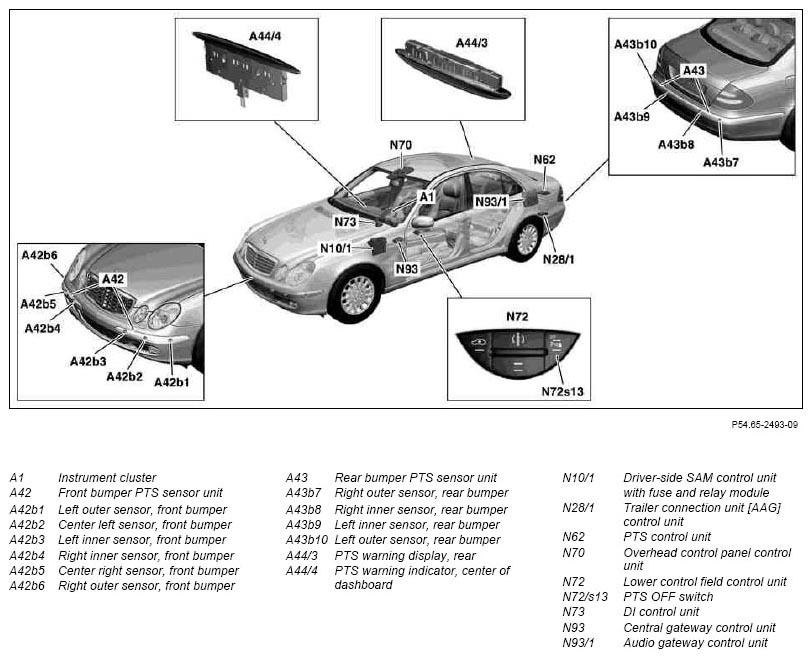

Fig 1: Locating Parktronic System (PTS) Components
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Shown on Model 211.0
