Fuse and relay box, as-built configuration - GF54.15-P-0800T
MODEL 211.0/2 except CODE () up to Model Year 06 including

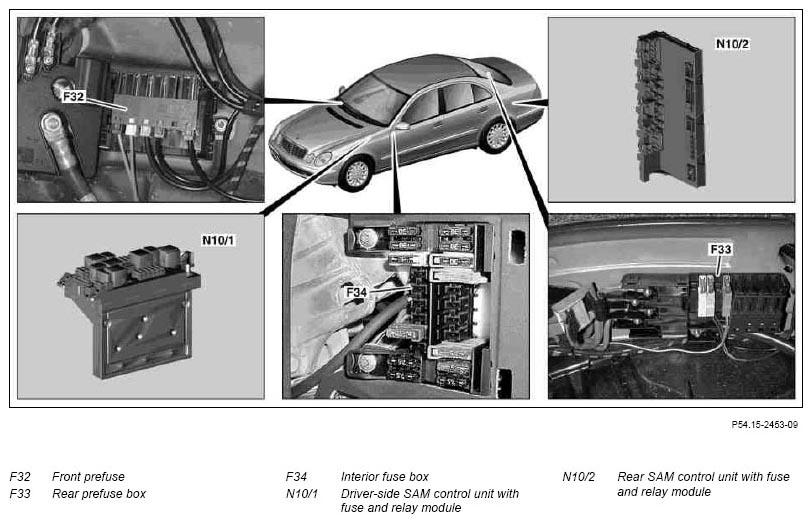

Location on example of model 211.0

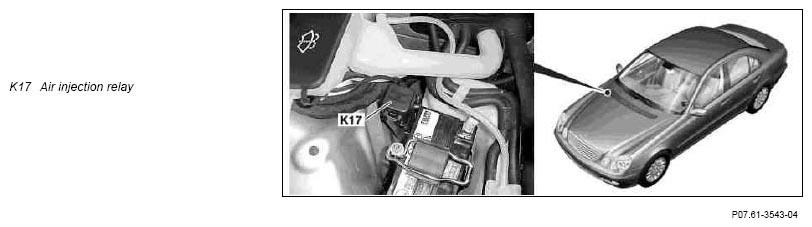

Location of additional relay on model 211.0 up to and including code 804 Model year 2004 (only engine 113.990 (E 55 AMG))
The air injection relay (K17) is located in the engine compartment on the rear right under the dust filter housing or combination filter housing.

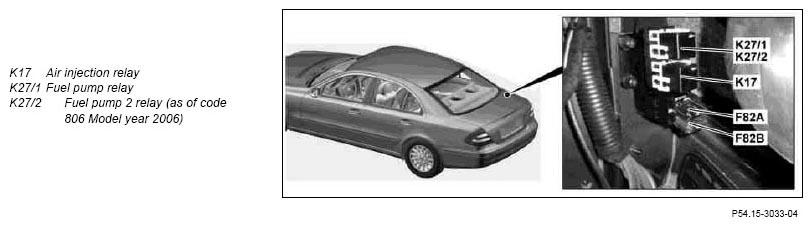

Location on example of model 211.0 as of code 805 Model year 2005 (only engine 113.990 (E 55 AMG))
Fitting point under the right side trim in the luggage compartment.

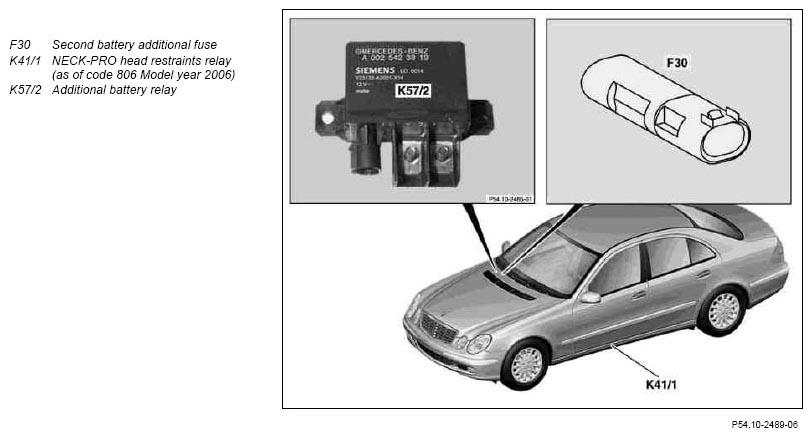

Location on example of model 211.0
The second battery additional fuse (F30) is attached to the wiring harness next to the additional battery (G1/7) and is designed as a circuit breaker (bimetal fuse).
The NECK-PRO head restraints relay (K41/1) is located in the wiring harness of the frame floor group on the driver-side at the entrance.
| Fuse assignment of fuse and relay box in left engine compartment | Up to and including code 803 Model year 2003 | GF54.15-P-1256-03TA |
| with code 804 Model year 2004 with code 805 Model year 2005 |
GF54.15-P-1256-03TB | |
| with code 806 Model year 2006 | GF54.15-P-1256-03TC | |
| Fuse assignment of fuse box in interior compartment on driver's side | Up to and including code 803 Model year 2003 | GF54.15-P-1256-04TA |
| with code 804 Model year 2004 with code 805 Model year 2005 |
GF54.15-P-1256-04TB | |
| with code 806 Model year 2006 | GF54.15-P-1256-04TC | |
| Fuse assignment of fuse and relay box in trunk | Up to and including code 805 Model year 2005 | GF54.15-P-1256-06TA |
| with code 806 Model year 2006 | GF54.15-P-1256-06TB | |
| Fuse assignment of front prefuse box | Up to and including code 805 Model year 2005 | GF54.15-P-1256-07T |
| with code 806 Model year 2006 | GF54.15-P-1256-07TA | |
| Fuse assignment of rear prefuse box | Up to and including code 803 Model year 2003 | GF54.15-P-1256-08TA |
| with code 804 Model year 2004 with code 805 Model year 2005 |
GF54.15-P-1256-08TB | |
| with code 806 Model year 2006 | GF54.15-P-1256-08TC | |
| Relay assignment of fuse and relay box in left side of engine compartment | GF54.15-P-1257-03T | |
| Relay assignment of fuse and relay box in trunk | GF54.15-P-1257-04T |
