Component description for an engine diagnosis indicator lamp - GF54.30-P-5010V

MODEL 203 with ENGINE 272.920

except CODE (494) USA version

up to Model Year 8

MODEL 211 with ENGINE 272.922 except CODE (494) USA version

MODEL 203 with ENGINE 272.940

except CODE (494) USA version

up to Model Year 8

MODEL 203 with ENGINE 272.941

except CODE (494) USA version

up to Model Year 8

MODEL 171 with ENGINE 272.942

except CODE (494) USA version

up to Model Year 8

MODEL 211, 219 with ENGINE 272.943 except CODE (494) USA version

MODEL 211 with ENGINE 272.944 except CODE (494) USA version

MODEL 251 with ENGINE 272.945

except CODE (494) USA version

up to Model Year 8

MODEL 221 with ENGINE 272.946

except CODE (494) USA version

up to Model Year 8

MODEL 203 with ENGINE 272.960

except CODE (494) USA version

up to Model Year 8

MODEL 171 with ENGINE 272.963

except CODE (494) USA version

up to Model Year 8

MODEL 211, 219 with ENGINE 272.964 except CODE (494) USA version

MODEL 221 with ENGINE 272.965

except CODE (494) USA version

up to Model Year 8

MODEL 230 with ENGINE 272.966

except CODE (494) USA version

up to Model Year 8

MODEL 164, 251 with ENGINE 272.967

except CODE (494) USA version

up to Model Year 8

MODEL 203 with ENGINE 272.970

except CODE (494) USA version

up to Model Year 8

MODEL 211 with ENGINE 272.972 except CODE (494) USA version

MODEL 221 with ENGINE 272.975

except CODE (494) USA version

up to Model Year 8

MODEL 211, 219 with ENGINE 272.985 except CODE (494) USA version

MODEL 221 with ENGINE 273.922

except CODE (494) USA version

up to Model Year 8

MODEL 164 with ENGINE 273.923

except CODE (494) USA version

up to Model Year 8

MODEL 221 with ENGINE 273.924

except CODE (494) USA version

up to Model Year 8

MODEL 211, 219 with ENGINE 273.960 except CODE (494) USA version

MODEL 216, 221 with ENGINE 273.961

except CODE (494) USA version

up to Model Year 8

MODEL 211 with ENGINE 273.962 except CODE (494) USA version

MODEL 164, 251 with ENGINE 273.963

except CODE (494) USA version

up to Model Year 8

MODEL 230 with ENGINE 273.965

except CODE (494) USA version

up to Model Year 8

MODEL 209 with ENGINE 273.967 except CODE (494) USA version

MODEL 221 with ENGINE 273.968

except CODE (494) USA version

up to Model Year 8

MODEL 209 with ENGINE 272.940 except CODE (494) USA version

MODEL 209 with ENGINE 272.960 except CODE (494) USA version

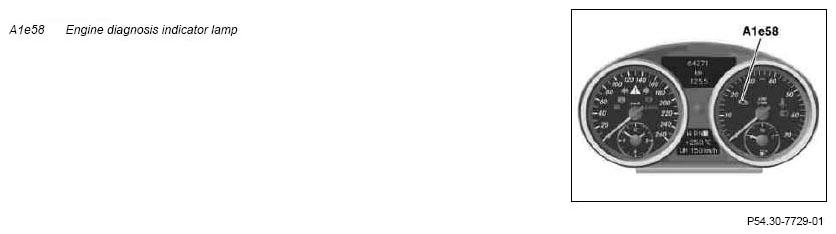

Shows model 171

Fig 1: Locating Engine Diagnosis Indicator Lamp

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Location

The engine diagnosis indicator lamp (engine symbol) is located in the instrument cluster.

Task

To indicate faults in the fuel injection system.

Function

The indicator lamp is actuated by the instrument cluster via a CAN message from the engine control unit. To check the function it lights up with ignition ON and as of an engine speed of approx. 500 RPM for approx. 1 s. If there is no fault, the indicator lamp goes out
