Remove/install front prefuse box - AR54.15-P-1330T

MODEL 211.0/2/6

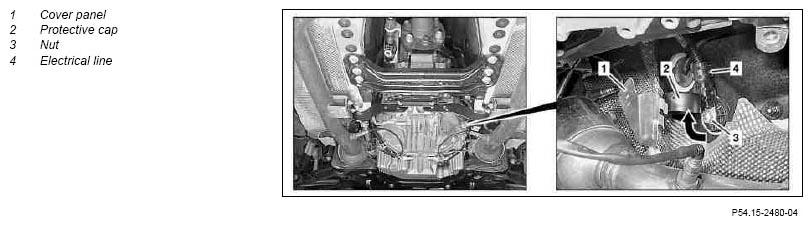

Fig 1: Identifying Front Pre-Fuse Box Components (1 Of 2)
G07284336Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

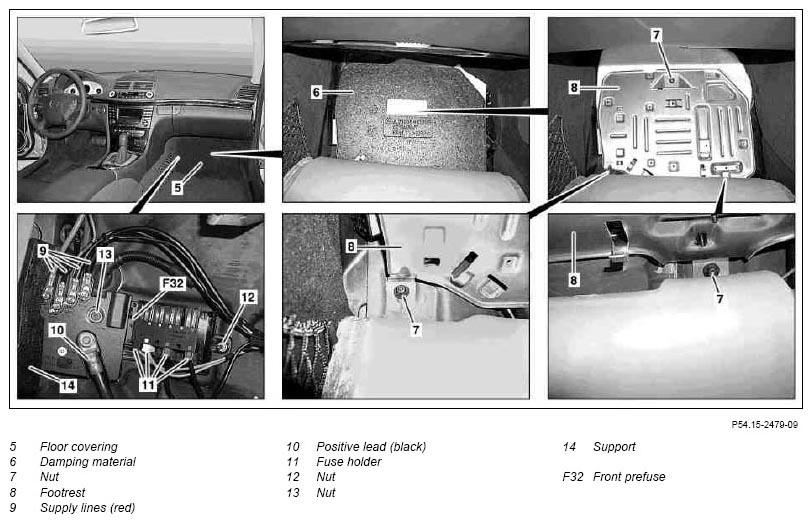

Fig 2: Identifying Front Pre-Fuse Box Components (2 Of 2)
G07284337Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Remove/Install
1 Disconnect battery ground line Model 211.0/6 AR54.10-P-0003T
Model 211.2 AR54.10-P-0003TA
2.1 Remove rear engine compartment paneling Model 211.042/043/056/061/065/070/076/080/082/083/242/243/256/261/265/270/276/280/282/283
Model 211.042/043/061/065/070/076/080/082/083/242/243/261/265/270/276/280/282/283 AR61.20-P-1105T
2.2 Remove bottom section of soundproofing Model 211.004/006/016/023/026/028/206/216/223/226/606/616 AR94.30-P-5300T
3 Remove cover panel (1)
4 Clip on protective cap (2) (arrow)
5 Unscrew nut (3) and detach electrical line (4) NOTES Install new self-locking nuts (3).
TORQUE SPECIFICATION *BA54.10-P-1009-01C
DANGER Risk of death  cased by vehicle slipping or toppling off of the lifting platform. Align vehicle between the columns of the hydraulic hoist and position the four support plates below the hoist support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
6 Lower vehicle with lifting platform
7 Fold back floor covering (5) in front passenger footwell
8 Remove damping material (6) upwards off the footrest (8)
9 Unscrew nuts (7)
10 Remove footrest (8) and put down in front passenger footwell
11 Remove support (14)
12 Mark installation position of individual supply lines (red) (9)
13 Detach supply lines (red) (9) at the front prefuse box (F32) and put the supply lines (red) (9) to one side IMPORTANT Nuts remain attached to supply lines (red) (9).
IMPORTANTInstallation:  Observe installation markings.

TORQUE SPECIFICATION *BA54.10-P-1009-01C
14 Detach positive lead (black) (10) and put to one side TORQUE SPECIFICATION *BA54.10-P-1009-01C
15 Unclip fuse holder (11) at the front prefuse box (F32) IMPORTANT Number of fuse holders (11) varies depending on equipment configuration.
IMPORTANTInstallation:  Pay attention to color coding of fuse holder (11).

16 Unscrew nut (12)
17 Unscrew nut (13) and remove front prefuse box (F32) TORQUE SPECIFICATION *BA54.10-P-1002-01C
18 Install in the reverse order
BATTERY

Number Designation Model 211
BA54.10-P-1002-01C Nut, terminal 30 in prefuse box M8 Nm 7
BA54.10-P-1009-01C Nut, line connection to front prefuse box M6 Nm 7
M8 Nm 14
