Remove/install cruise control switch - AR54.25-P-2803TA

MODEL 211.0/2/6

As of model year 04

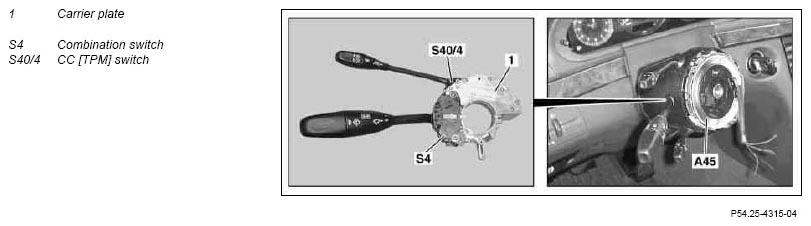

Fig 1: Identifying Cruise Control Switch, Combination Switch And Carrier Plate
G07284356Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Remove/install
1 Remove steering angle sensor AR46.10-P-0300TA
2 Detach combination switch (S4) from the carrier plate (1) of the cruise control pushbutton switch (S40/4) AR54.25-P-2800TA
3 Install in the reverse order
4 Carry out function check of cruise control pushbutton switch (S40/4)
