Install/remove battery disconnect switch - AR54.10-P-1060T

MODEL 211.0/2/6, 219.3 as of 1.6.06

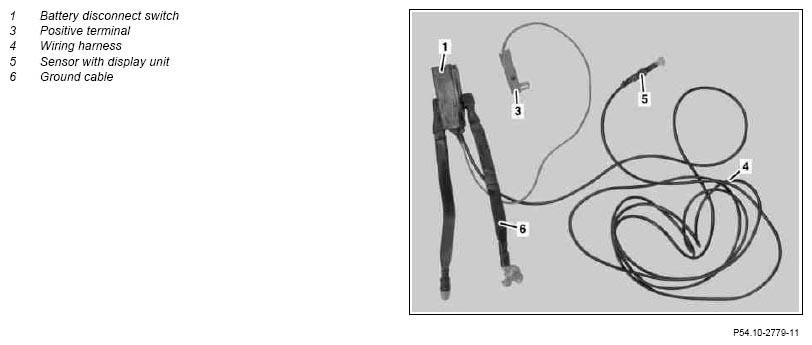

Fig 1: Identifying Battery Disconnect Switch Components (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

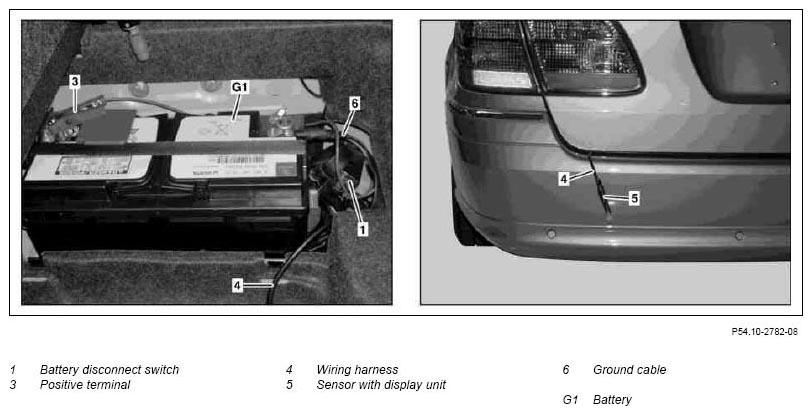

Fig 2: Identifying Battery Disconnect Switch Components (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 211.2

	Install
	The battery disconnect switch (1) is installed in order to prevent the battery (G1) from discharging if the vehicle stands idle for a long period of time.
1	Disconnect on-board ground line from battery (G1)	Model 211.0/6	AR54.10-P-0003T
		Model 211.2	AR54.10-P-0003TA
		Model 219.3	AR54.10-P-0003TX
2	Detach positive terminal cover on battery (G1), turn it by 180° and attach again
3	Connect on-board ground line to negative terminal of battery disconnect switch (1)
4	Clip positive terminal (3) of battery disconnect switch (1) onto positive terminal of battery (G1) and fix in place if necessary
5	Position battery disconnect switch (1) at battery (G1)	Position the battery disconnect switch (1) in such a way that it cannot cause noises while the vehicle is in motion.
6	Route wiring harness (4) of battery disconnect switch (1) in luggage compartment and guide sensor with display unit (5) out of luggage compartment on left-hand side	The outboard part of the wiring harness (4) together with the sensor with display unit (5) must be approx. 15 cm.
7	Connect ground line (6) of battery disconnect switch (1) to battery (G1) and make vehicle ready for operation	Basic programming does not need to be performed.
		Model 211.0/6	AR54.10-P-0003T
		Model 211.2	AR54.10-P-0003TA
		Model 219.3	AR54.10-P-0003TX
	Carrying out functional check
8	Check operation of battery disconnect switch (1)	Activating the on-board electrical system:  Guide the solenoid past the sensor with display unit (5). The battery disconnect switch (1) is closed and the on-board power supply voltage is applied. The LED on the sensor with display unit (5) flashes. If the alternator voltage is applied (engine running), the LED on the sensor with display unit (5) remains lit. Deactivating the on-board electrical system:  Hold the solenoid at the sensor with display unit (5) for approx. 5 s. The battery disconnect switch (1) is opened and no on-board power supply voltage is applied. The LED on the sensor with display unit (5) does not light up. The battery disconnect switch (1) is opened automatically if it has remained inactive for approx. 90 min.
	Removing
9	Disconnect ground line (6) of battery disconnect switch (1) from battery (G1)	Model 211.0/6	AR54.10-P-0003T
		Model 211.2	AR54.10-P-0003TA
		Model 219.3	AR54.10-P-0003TX
10	Disconnect positive terminal (3) of battery disconnect switch (1) from positive terminal of battery (G1)
11	Detach positive terminal cover on battery (G1), turn it by 180° and attach again
12	Expose sensor with display unit (5) and wiring harness (4) of battery disconnect switch (1)
13	Expose battery disconnect switch (1) and disconnect on-board ground line from negative terminal of battery disconnect switch (1)
14	Connect on-board ground line to battery (G1)	Model 211.0/6	AR54.10-P-0003T
		Model 211.2	AR54.10-P-0003TA
		Model 219.3	AR54.10-P-0003TX
