Central gateway control unit (ZGW), remove and install - AR54.21-P-0817T
MODEL 211.0/2/6
Shown on model 211.0
MODIFICATION NOTES
| 5.7.06 | "Disconnect/connect battery ground line" removed |
| Remove/install | |||
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1.1 | Store basic data from central gateway control unit (N93) temporarily in STAR DIAGNOSIS | When installing new central gateway control unit (N93). |
|
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04TX | ||
| STAR DIAGNOSIS diagnosis system | *WH58.30-Z-1048-13A | ||

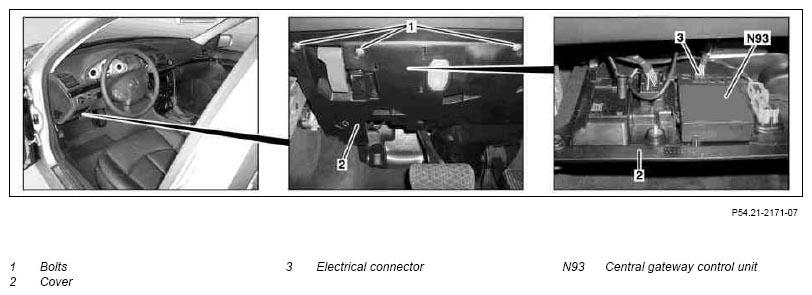

| 2 | Remove bolts (1) | ||
| 3 | Unclip clip from cover (2) | ||
| 4 | Fold cover (2) down until central gateway control unit (N93) is accessible | ||
| 5 | Disconnect electrical connector (3) | ||
| 6 | Unclip central gateway control unit (N93) from cover (2) and remove | ||
| 7 | Install in the reverse order |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnosis system, Compact Passenger Car | 6511 1801 00 |
