Remove/install fanfare horn system - AR54.35-P-1555T

MODEL 211.0/2/6

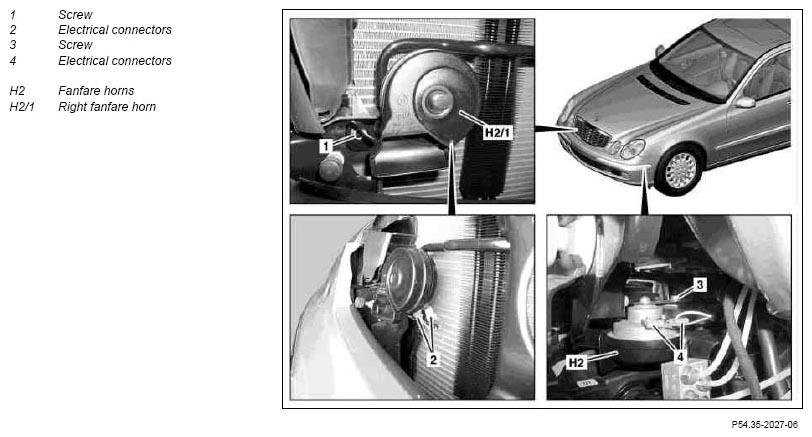

Fig 1: Identifying Fanfare Horn System Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

MODIFICATION NOTES

8.1.04

Disconnect/connect/remove ground lead from battery

	Remove/Install
1	Open engine hood	See Operating Instructions
2	Unscrew bolt (1)		*BA54.35-P-1002-01A
3	Separate electrical connector (2) and remove right fanfare horn (H2/1)
4	Remove front section on fender liner of left front fender		AR88.10-P-1310T
5	Unscrew bolt (3).		*BA54.35-P-1002-01A
6	Separate electrical connectors (4) and remove fanfare horns (H2)
7	Install in the reverse order

HORN

Number	Designation		Model 211
BA54.35-P-1002-01A	Bolt, fanfare horn bracket to front cross member	Nm	8
