Remove/install Parktronic system (PTS) control unit - AR54.65-P-0006TY
MODEL 211.0/2 as of 2.6.08 with CODE (220) Parktronic system (PTS) MODEL 211.0/2 with CODE (809) Model year 2009 with CODE (220) Parktronic system (PTS)
MODEL 219.3 as of 3.3.08 with CODE (220) Parktronic system (PTS)
MODEL 219.3 with CODE (809) Model year 2009 with CODE (220) Parktronic system (PTS)

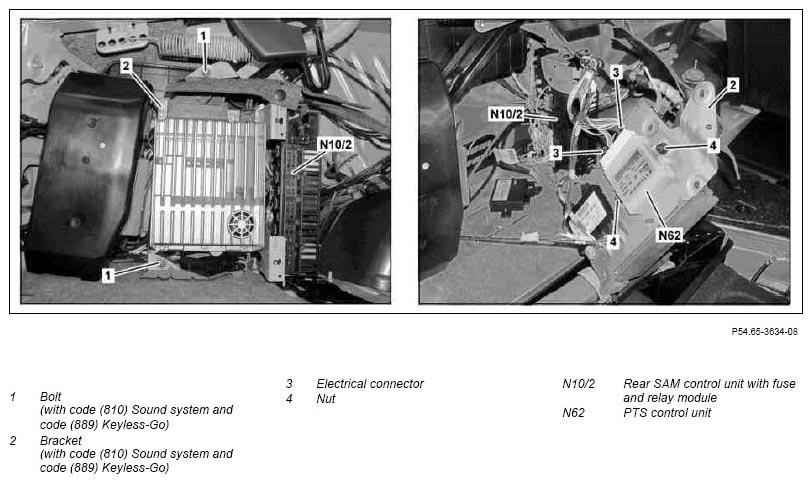

Shown on model 219.3 with code (810) Sound system and code (889) Keyless-Go
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Buffer basic data of PTS control unit (N62) in STAR DIAGNOSIS | When replacing the PTS control unit (N62). |
|
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| 2.1 | Remove left side paneling in trunk | Model 211.0 without code (287) Through-loading feature and without code (924) Bivalent natural gas drive | AR68.30-P-4800T |
| Model 211.0 with CODE (287) Through-loading feature | AR68.30-P-4800TA | ||
| Model 211.0 with code (924) Bivalent natural gas drive | AR68.30-P-4800TB | ||
| Model 219.3 | AR68.30-P-4800TX | ||
| 2.2 | Remove interior trim on left of load compartment sideways and fold up soundproofing underneath | Model 211.2 | AR68.30-P-1180T |
| 3.1 | Remove bolts (1) and unhook bracket (2) from rear SAM control unit with fuse and relay module (N10/2) and swivel to one side until PTS control unit (N62) is accessible | For vehicles with code (810) Sound system or code (889) Keyless-Go | |
| 3.2 | Remove PTS control unit (N62) from the rear SAM control unit with fuse and relay module (N10/2) | On vehicles without code (810) Sound system and without code (889) Keyless-Go | |
| 4 | Separate electrical connectors (3) | ||
| 5 | Remove nuts (4) and remove PTS control unit (N62) from bracket (2) | For vehicles with code (810) Sound system or code (889) Keyless-Go | |
| 6 | Install in the reverse order |
