Central gateway control unit location/task - GF00.19-P-4100T

MODELS 211.0/2/6

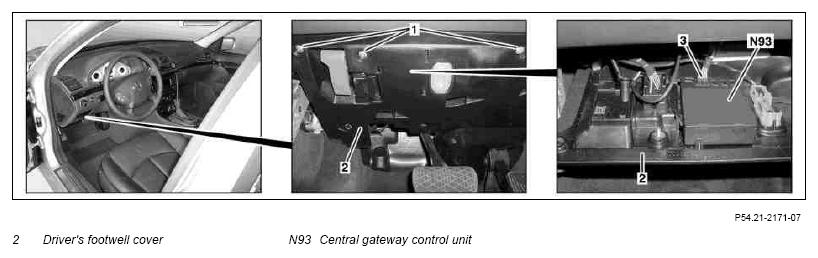

Fig 1: Locating Central Gateway Control Unit
G07283686Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Central gateway control unit, location The central gateway control unit (N93) is located under the driver's footwell cover (2).
Central gateway control unit, task   GF00.19-P-4100-01T
