Remove/install cover for filler fitting - AR63.50-P-1400-01TA

Fig 1: Identifying Special Tool For Replacing Right Rear Fender (211 589 00 91 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Cover Panel (211 589 02 91 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

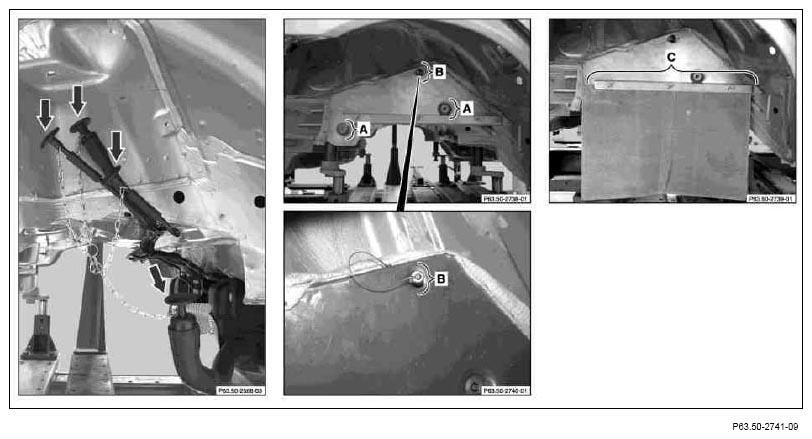

Fig 3: Locating Open Fuel Lines And Area A, B & C

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

1. Remove inner fender at rear inner wheel arch panel.
2. Remove expansion tank and fuel filler neck from tank system.
3. Plug open fuel lines with plastic plugs (arrows).
4. Fasten cover on inner rear wheelhouse (areas A and B).

   Use original nuts (area A).

5. Install protective cover (area C).
