Install D-pillar - AR63.20-P-2000-03TA

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1003-01A	Sealant, white, 310 ml, DB supply specification 6069.20	A 001 989 63 20
BR00.45-Z-1041-01A	Seam sealant, sprayable 310 ml	A 002 989 84 20
BR00.45-Z-1003-05A	Cavity preservation, solvent-free (1 l container)	A 000 986 72 70 05
BR00.45-Z-1001-13A	Blind rivet 6.4 14	A 003 990 35 97

Install D-pillar, rear fender, roof and trunk lid, fit and fasten
Install taillamp, rubber seal and locking eye.
Check gaps and adjust:
- rear fender to taillamp
- taillamp in rear-end doors to taillamp
- rear-end doors to rear fender
- rear window to D-pillar
- tank flap
- rear door to bottom side section
Use feeler gauge!

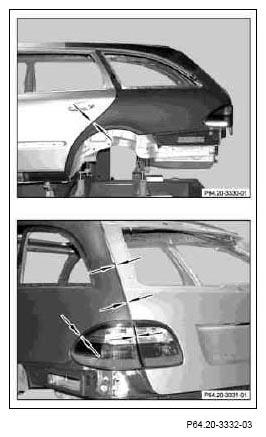

Fig 2: Identifying Gaps Between Rear Fender To Taillamp With Rear Window To D-Pillar
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Remove trunk lid, rear fender and roof.
Drill dia. 6.5 mm rivet holes (area G).
Drill pilot hole (area C1).
Remove D-pillar.
Deburr rivet holes on both sides

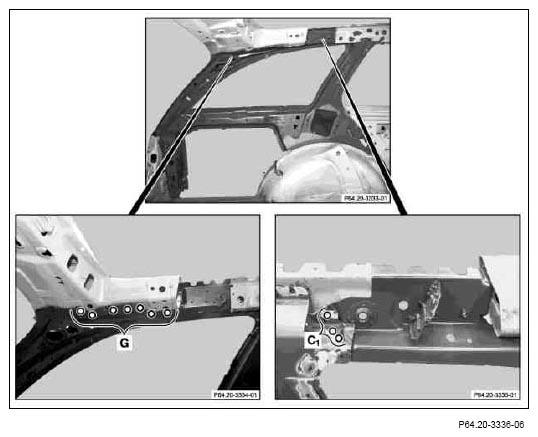

Fig 3: Identifying Area G & C1
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

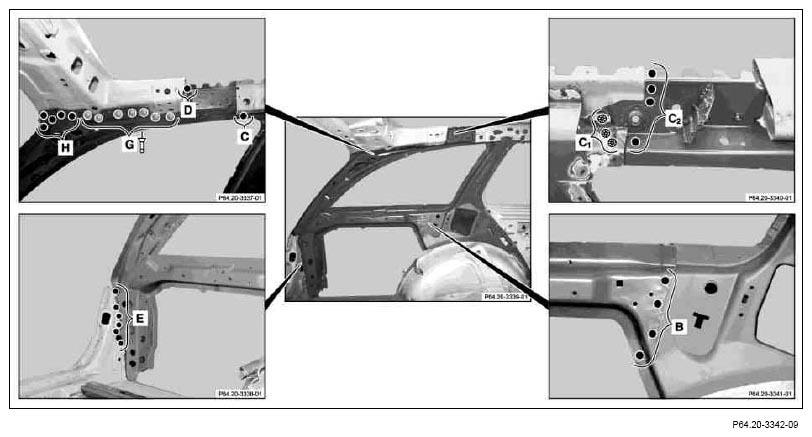

Fig 4: Identifying Areas B, C, C1, C2, D, E, H & G
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Install D-pillar, fit and fasten with manual temporary fastener.
Rivet D-pillar Polygrip flat head rivets, dia. 6.4 x 14 mm (area G).
Weld in D-pillar with (areas B, C, C2, D, E and H).
Weld in D-pillar with (area C1).
Weld in D-pillar with (area E).
Remove grinding and drilling chips using wet/dry vacuum cleaner.

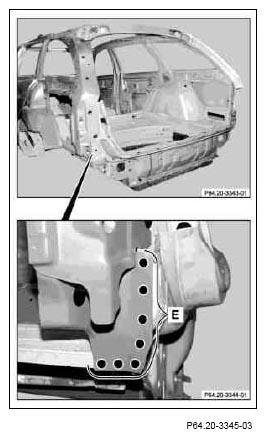

Fig 5: Identifying D-Pillar And Area E
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
