Remove center roof paneling - AR65.10-P-1000-02TA

Fig 1: Identifying Weld Spot Milling Cutter (201 589 00 51 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1002-01A	Ball cutter, dia. 12 mm
WH58.30-Z-1006-01A	Vario Drill WS 91 spot weld removing tool
WH58.30-Z-1001-03A	Round wire brush, braided, dia. 70 mm
WH58.30-Z-1021-04A	Cutting disk, dia. 65 mm, 80 m/s (max. 23,500 RPM)
WH58.30-Z-1024-04A	Abrasive disk, dia. 115 mm, 80 m/s (max. 13,250 RPM)
WH58.30-Z-1004-20A	Hot-air gun
WH58.30-Z-1001-40A	Tarp (fire-resistant)

WORKSHOP EQUIPMENT

WE58.40-Z-1001-03A	Drill (electric/pneumatic)
WE58.40-Z-1002-03A	Straight grinder (electric/pneumatic)
WE58.40-Z-1003-03A	Angle grinder (electric/pneumatic)
WE58.40-Z-1005-03A	Wet/dry vacuum cleaner

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1001-07A	Zinc dust paint suitable for spot welding	A 000 986 34 42

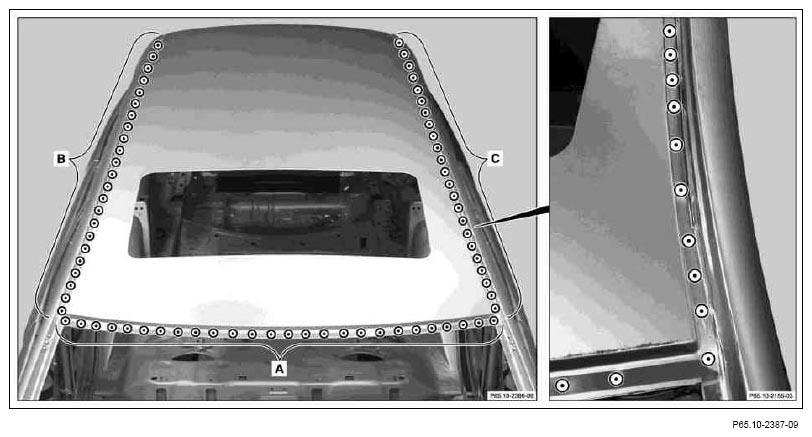

Fig 2: Identifying Vehicle Spot Weld Areas

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Expose spot welds and cut out with spot weld cutter (areas A, B and C).

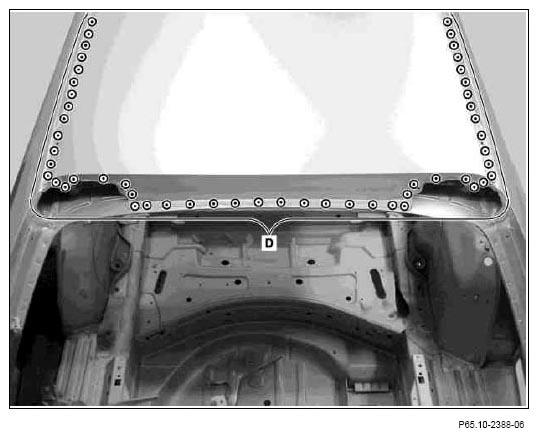

Expose spot welds and cut out with spot weld cutter (area D).

Fig 3: Identifying Vehicle Spot Weld Cutting Area D
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

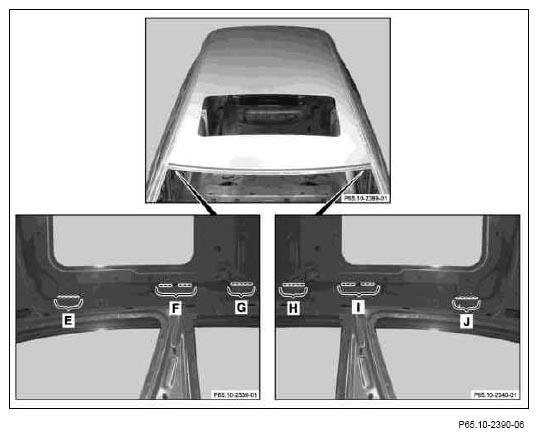

Grind out welds (areas E, F, G, H, I and J).

Fig 4: Identifying Vehicle Grinding Area
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

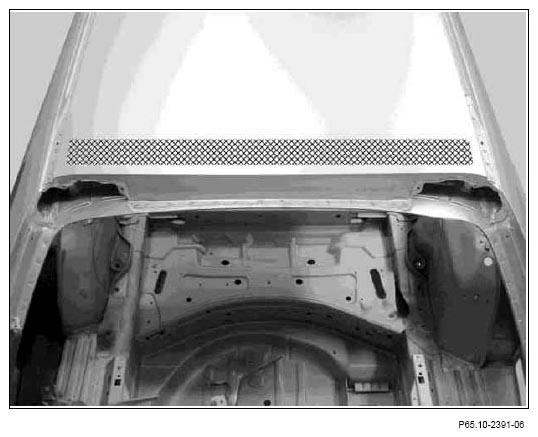

Heat shaded areas.

Fig 5: Identifying Center Roof Paneling Heating Areas

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Remove center roof paneling.

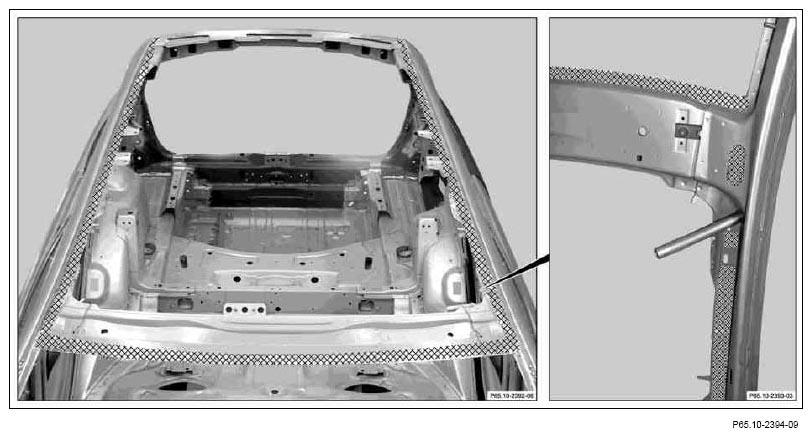

Fig 6: Identifying Vehicle Grinding Areas (Front View)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Front view
Grind connection surfaces down to bare metal in shaded areas. Sand spot weld flanges to bare metal on both sides
Remove grinding and drilling chips using wet/dry vacuum cleaner.
Coat insides of spot weld flanges with zinc dust paint.

Rear view

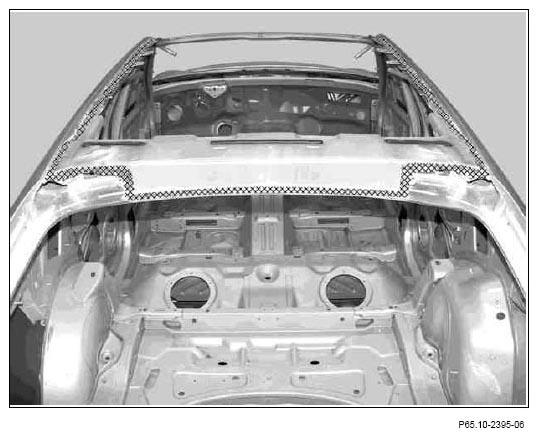

Fig 7: Identifying Vehicle Grinding Areas (Rear View)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
