Remove C-pillar - AR63.20-P-0500-01TA

Fig 1: Identifying Weld Spot Miller (201 589 00 51 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1002-01A	Ball cutter, dia. 12 mm
WH58.30-Z-1006-01A	Vario Drill WS 91 spot weld removing tool
WH58.30-Z-1001-03A	Round wire brush, braided, dia. 70 mm
WH58.30-Z-1021-04A	Cutting disk, dia. 65 mm, 80 m/s (max. 23,500 RPM)
WH58.30-Z-1024-04A	Abrasive disk, dia. 115 mm, 80 m/s (max. 13,250 RPM)
WH58.30-Z-1004-20A	Hot-air gun
WH58.30-Z-1001-40A	Tarp (fire-resistant)

WORKSHOP EQUIPMENT

WE58.40-Z-1001-03A	Drill (electric/pneumatic)
WE58.40-Z-1002-03A	Straight grinder (electric/pneumatic)
WE58.40-Z-1003-03A	Angle grinder (electric/pneumatic)
WE58.40-Z-1004-03A	Body saw (electric/pneumatic)
WE58.40-Z-1005-03A	Wet/dry vacuum cleaner

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1001-07A	Zinc dust paint suitable for spot welding	A 000 986 34 42

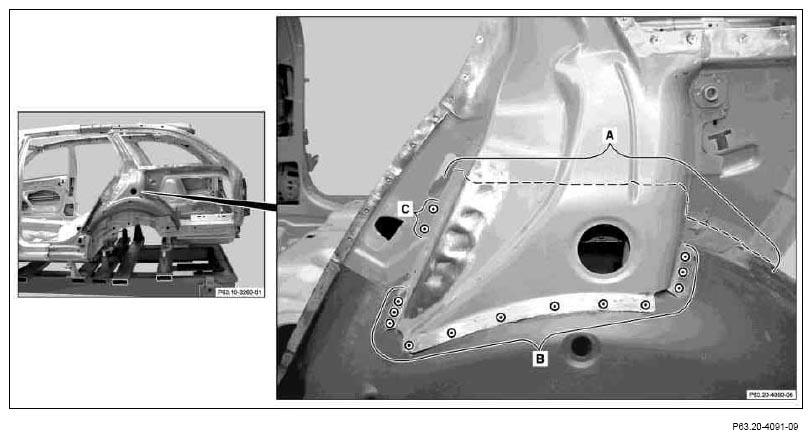

Fig 2: Identifying C-Pillar Spot Welding Areas (B And C)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

1. Mark separation point and cut with body saw (area A).
2. Cut out spot welds with spot weld cutter (areas B and C).

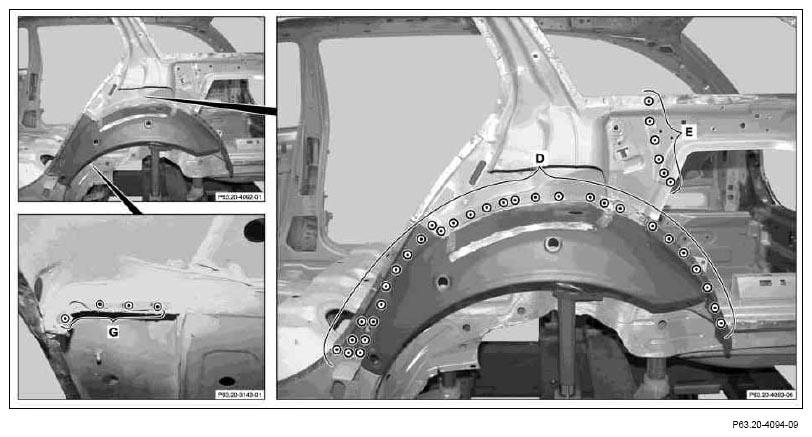

   Fig 3: Identifying C-Pillar Spot Welding Areas (D, E And G)

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
3. Cut out spot welds with spot weld cutter (areas D, E and G).
4. Mark separation point and cut with body saw (area F).
5. Cut out spot welds with spot weld cutter (areas I and H).
6. Cut out spot welds from inside with spot weld cutter (area J).
7. Remove section.

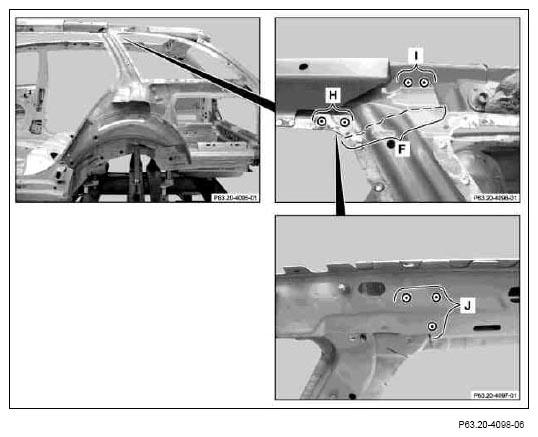

   Fig 4: Identifying C-Pillar Spot Welding Areas (F, I, H And J)

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

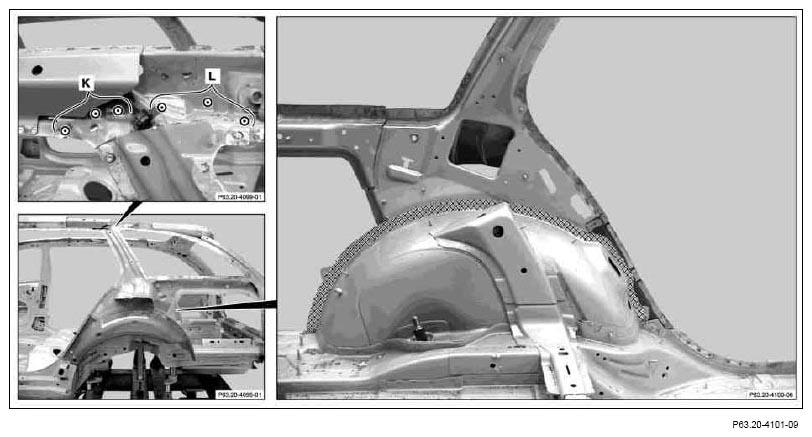

   Fig 5: Identifying C-Pillar Spot Welding Areas (K And L)

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
8. Cut out spot welds with spot weld cutter (areas K and L).
9. Heat shaded areas and remove part completely.

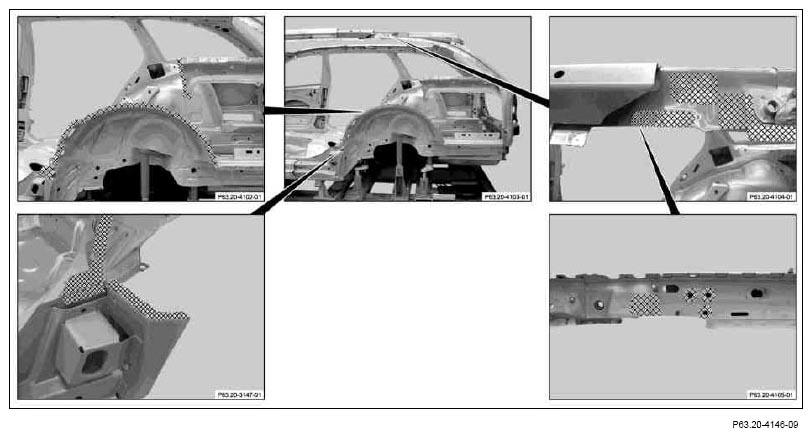

   Fig 6: Identifying C-Pillar Connection Surfaces Shaded Areas

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
10. Grind connection surfaces down to bare metal in shaded areas. Sand spot weld flanges to bare metal on both sides
11. Remove grinding and drilling chips using wet/dry vacuum cleaner.
12. Coat insides of spot weld flanges with zinc dust paint.
