Remove/install pedal assembly - AR29.10-P-0300TA

MODEL 211 with TRANSMISSION 716.6, 722.6 except CODE (424) Sequentronic automated manual transmission (SEQ)

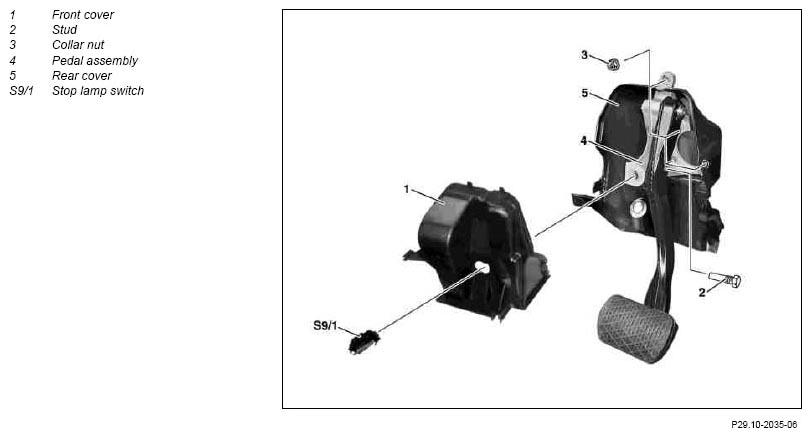

Fig 1: Identifying Pedal Assembly Components (Model 211 With Transmission 716.6, 722.6)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Remove left cover below dashboard		AR68.10-P-1500T
2	Remove stop lamp switch (S9/1)		AR42.10-P-0040I
3	Unclip and remove front cover (1)
4	Remove stud (2)	Check screw bolt for signs of damage and wear, replace if necessary. Installation:  apply light coating of grease to pin.
		Long-life grease	*BR00.45-Z-1001-06A
5	Unscrew collar nut (3)
6	Unclip pedal assembly (4) from rear cover (5) and remove.
7	Install in the reverse order
