Remove/install front brake control cable - AR42.20-P-0520T
MODEL 211
| Remove/install | |||
| 1.1 | Remove rear section on bottom of soundproofing | Vehicles with diesel engines | AR94.30-P-5300T |
| 1.2 | Remove rear part section of engine compartment paneling | Vehicles with gasoline engine | AR61.20-P-1105T |
| 2 | Remove crossmember (35) | *BA62.30-P-1001-01A | |
| 3 | Detach heat shields (105d, 105e) and slide back or remove | Depending on accessibility | |

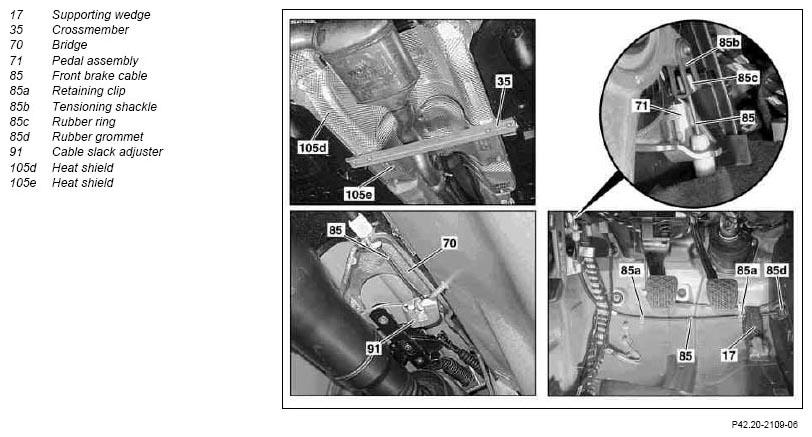

| 4 | Preload automatic slack adjuster (91) | AR42.20-P-0520-01A | |
| 5 | Detach front brake cable (85) at automatic cable slack adjuster (91) | ||
| Pre-tension automatic cable slack adjuster (91) again. |
AR42.20-P-0520-01A | ||
| Slacken automatic cable slack adjuster (91) | AR42.20-P-0520-02A | ||
| 6 | Remove retaining clip (85a) at propshaft tunnel | ||
| 7 | Unclip front brake cable (85) from bridge (70) | *129589116300 | |
| 8 | Remove front left floor covering | AR68.20-P-2050T | |
| 9 | Remove retaining clip (85a) in driver footwell | ||
| 10 | Remove supporting wedge (17) | ||
| 11 | Detach front brake cable (85) from tensioning shackle (85b) | ||
| 12 | Unclip front brake cable (85) from pedal assembly (71) | *129589116300 | |
| 13 | Lever rubber grommet (85d) out of propshaft tunnel and pull front brake cable (85) into passenger compartment | ||
| 14 | Install in the reverse order | ||
| Checking | |||
| 15 | Check pedal travel at parking brake pedal; adjust parking brake if necessary | AR42.20-P-0540T |
CROSSMEMBER AND FRONT REINFORCEMENT
| Number | Designation | Model 211 | |
|---|---|---|---|
| BA62.30-P-1001-01A | Bolt, crossmember to body | Nm | 25 |
