Remove/install brake fluid reservoir - AR42.10-P-0301TA

MODEL 211, 219 with Adaptive Brake (ABR)

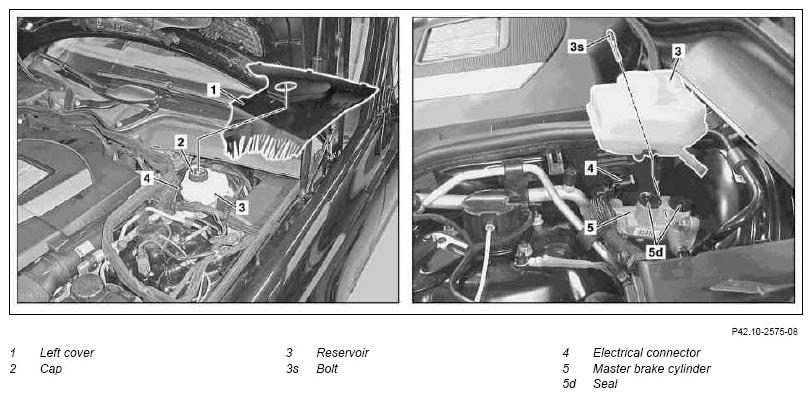

Fig 1: Identifying Brake Fluid Reservoir Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of poisoning  caused by swallowing brake fluid. Risk of injury  caused by brake fluid coming into contact with skin and eyes.	Pour brake fluid only into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Brake fluid notes		AH42.50-P-0001-01A
1	Remove left cover (1) in engine compartment
2	Unscrew cap (2) and remove strainer from reservoir (3)		*BA42.50-P-1001-01D
3	Suction off brake fluid from brake fluid reservoir (3)
4	Release and disconnect electrical connector (4)
5	Remove bolt (3s)		*BA42.10-P-1002-05J
			*001589872100
			*WH58.30-Z-1009-06A
6	Pull reservoir (3) out of master brake cylinder (5)	Collect discharged brake fluid using an absorbent rag, otherwise the vehicle paint will be damaged. Installation:  Replace the seals (5d).
7	Install in the reverse order
	Checking
8	Check reservoir (3) and seals (5d) for leaks
9	Check fluid level in reservoir (3); correct if necessary
	Brake system - inspect fluid level	Model 211	AP42.10-P-4210Z
		Model 219	AP42.10-P-4210TX

BRAKE SYSTEM HYDRAULICS

Number	Designation		Model 211, 230, 240	Model 219
BA42.50-P-1001-01D	Cap to brake fluid expansion reservoir	Nm	≈2	≈2

MASTER BRAKE CYLINDER

Number	Designation		Model 211 with ABR	Model 219 with ABR [Adaptive Brake]
BA42.10-P-1002-05J	Bolt, reservoir to master brake cylinder	Nm	4	4

Fig 2: Identifying Torque Wrench (001 589 87 21 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1009-06A	Open-end reversible ratchet, 3/8" for 9X12 mm socket
