Traction system hydraulic unit, location - GF42.50-P-4000-02E

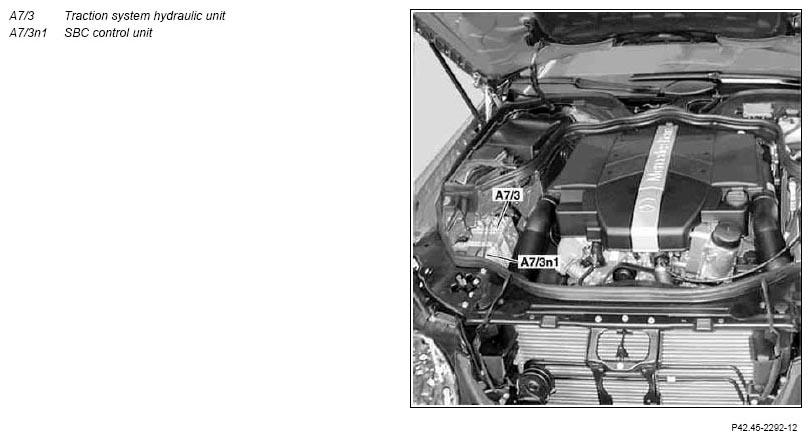

Fig 1: Identifying Traction System Hydraulic Unit And SBC Control Unit

G07284085

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
