Operating unit, location/task/design/function - GF42.46-P-4200SL

MODEL 211 up to 31.5.06 except CODE (494) USA version except CODE (498) Japan version

MODEL 211 up to 30.6.06 with CODE (494) USA version with CODE (498) Japan version

MODEL 230 up to Model Year 8

MODEL 240

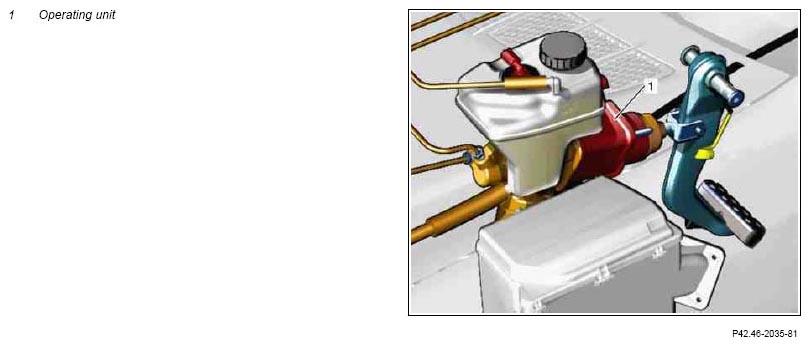

Fig 1: View Of Operating Unit

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Operating unit, location		GF42.46-P-4200-01SL
Operating unit, task	To convey to the driver the brake pressure at the brake pedal. Conveys the position of the brake pedal (brake pedal value) to the SBC control unit (A7/3n1) (model 211, 230), SBC left control unit (A7/3n1) and SBC right control unit (A7/4n1) (model 240). Functions as a master brake cylinder if the system fails.
Operating unit, design		GF42.46-P-4200-02SL
Operating unit, function	Models 211, 230	GF42.46-P-4200-03SL
Operating unit, function	Model 240	GF42.46-P-4200-03MB
