ESP control module, location - GF42.45-P-4500-03EE

Model 211

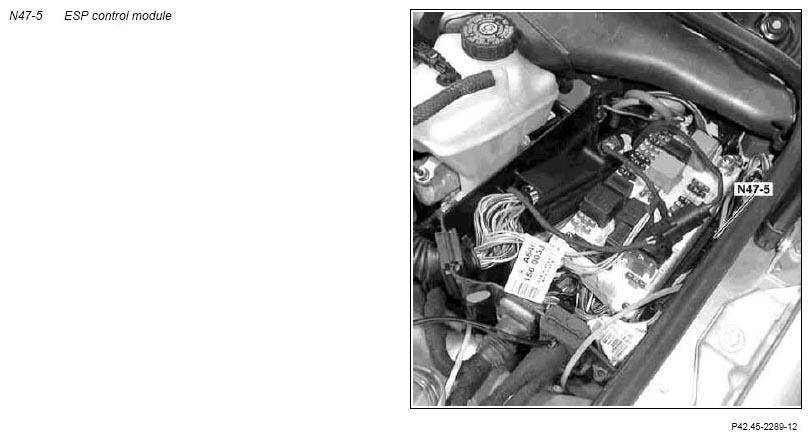

Fig 1: Identifying ESP Control Module

G07284054

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
