Brakes -- Functions & Locations -- E350 (211.256)
>>
Basic Knowledge
>>
Adaptive brake (ABR), block diagram - GF42.47-P-0001-03TM
Adaptive brake (ABR), block diagram - GF42.47-P-0001-03TM

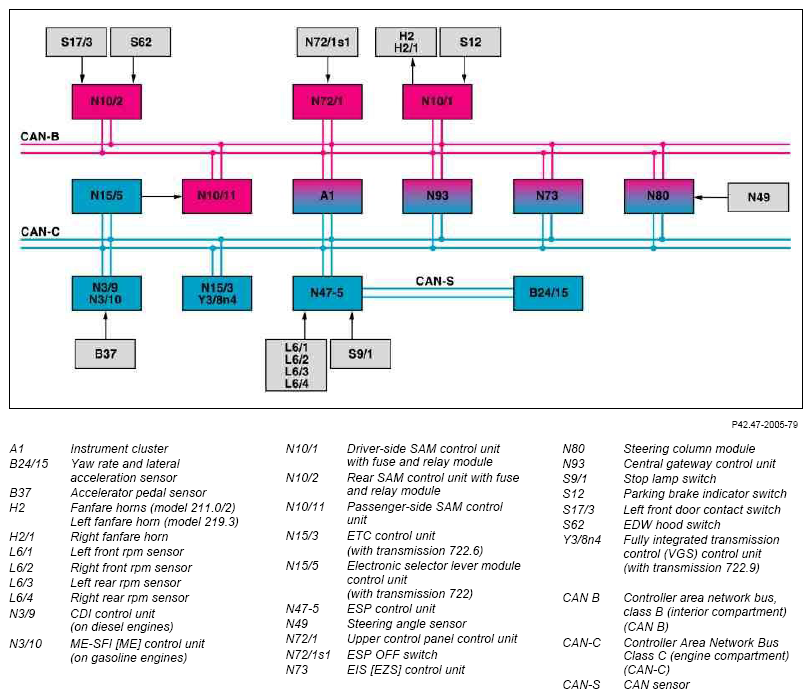

Fig 1: Adaptive Brake (ABR) Block Diagram
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
