Remove/install front door lock cylinder - AR72.10-P-4015T
MODEL 211.0/2/6

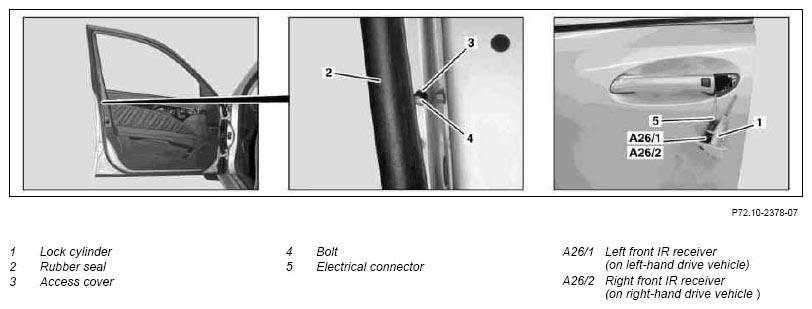

Shown on left front door
MODIFICATION NOTES
| 8.1.04 | Disconnect/connect/remove ground line from battery |
| Remove/Install | |||
| 1 | Remove rubber seal (2) in area of access cover (3) | ||
| 2 | Unscrew bolt (4) | *BA72.10-P-1005-01AB | |
| 3 | Pull lock cylinder (1) out of front door until electrical connector (5) is accessible | ||
| 4 | Disconnect electrical connector (5) from left front IR receiver (A26/1) or right front IR receiver (A26/2) and remove lock cylinder (1) | ||
| 5 | Install in the reverse order |
FRONT DOOR
| Number | Designation | Model 211 | |
|---|---|---|---|
| BA72.10-P-1005-01AB | Bolt, lock cylinder guide to front door | Nm | 3 |
