Doors & Windows -- E350 (211.256)
>>
Basic Knowledge
>>
Power windows (PW), location of components - GF72.29-P-0003-01T
Power windows (PW), location of components - GF72.29-P-0003-01T
Shown on model 211.0

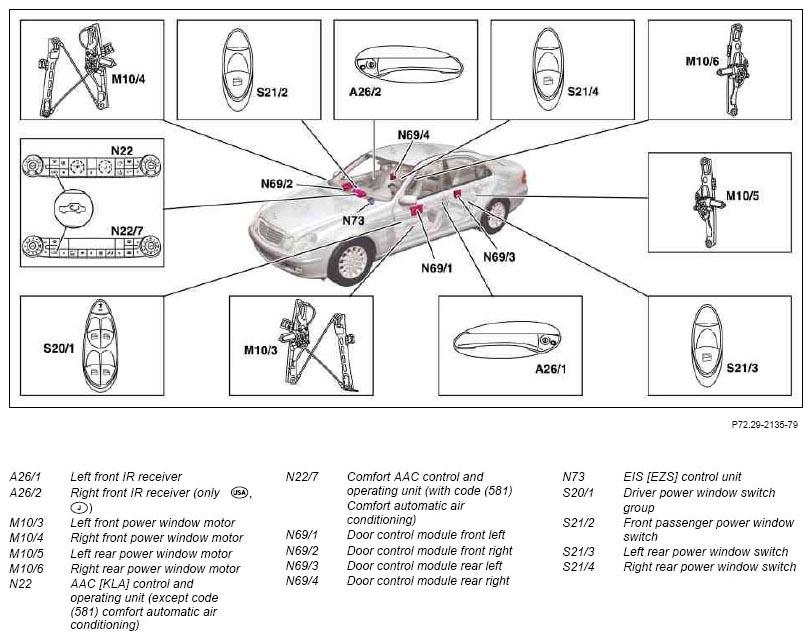

Fig 1: Locating Power Window Components
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
