Remove/install seal for tilting/sliding roof panel - AR77.20-P-1300T

MODEL 211.0/2, 240.0 with CODE (414) Glass electric tilting/sliding roof

MODEL 240.1 with CODE (418) Glass tilting/sliding roof in rear

Shown on model 211.0

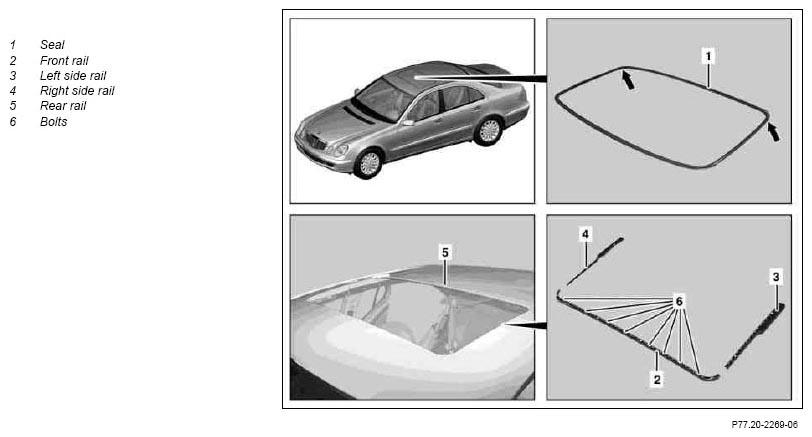

Fig 1: Identifying Tilting/Sliding Roof Panel Seal Components (Shown On Model 211.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove
1	Remove wind deflector		AR77.20-P-2500T
2	Loosen bolts (6) on front rail (2) *
3	Pull seal (1) out of front rail (2), left side rail (3), right side rail (4) and rear rail (5) *	Carefully pull seal (1) out of front rail (2), since barbs are attached to the front rail (2) and otherwise the seal (1) can be damaged.
	Install
4	Press front rail (2) up and tighten bolts (6).
5	Press seal (1) into front rail (2), left side rail (3), right side rail (4) and rear rail (5) *	Moisten seal (1) with lubricant. Press seal (1) in first at points marked with arrow with ribbing up.
		Antifriction agent	*BR00.45-Z-1010-06A
6	Reinstall wind deflector		AR77.20-P-2500T
