Remove/install rebound - AR77.20-P-1400T

MODEL 211.0/2, 240.0 with CODE (414) Power glass tilting/sliding roof

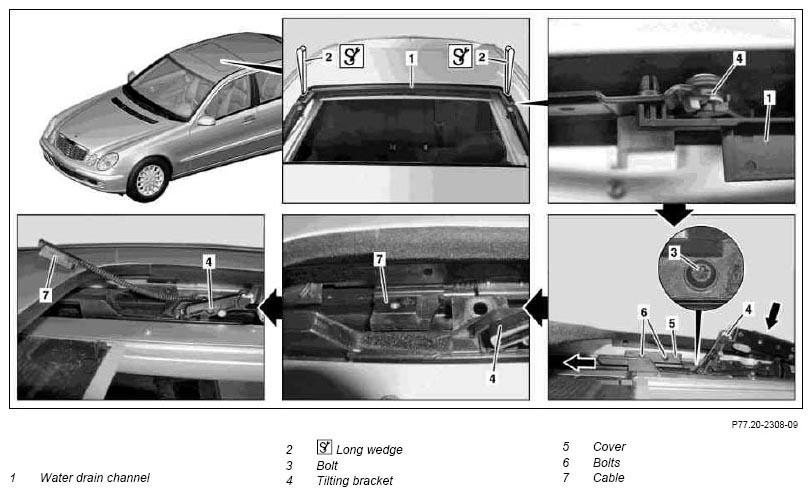

Fig 1: Identifying Rebound Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 211.0

	Remove/install
1	Remove tilting/sliding roof panel		AR77.20-P-1000T
2	Remove overhead control panel control unit	Leave mounts on tilting/sliding roof panel in tilt position
		Model 211.0/2	AR82.20-P-1000T
		Model 240.0	AR82.20-P-1000H
3	Remove tilting/sliding roof motor	Installation:  Before installing tilting/sliding roof motor, slide tilting bracket (4) toward front to stop.	AR77.20-P-3010T
4	Remove rain trough (1) with long wedge (2).		*115589035900
5	Unscrew screw (3) from rebound (7) on tilting bracket (4) on both sides
6	Push tilting bracket (4) approx. 6 cm to rear on both sides
7	Unscrew bolts (6) from cover (5) on both sides, remove cover (5) upward on both sides.
8	Slide rebound (7) approx. 10 cm toward rear on both sides.
9	Remove rebound (7) from slide rail on both sides and pull out toward rear	Carefully pull out rebound (7), otherwise paint can be damaged.
10	Install in the reverse order
