Sliding Roof, Soft Top -- E350 (211.256)
>>
Basic Knowledge
>>
Electric sliding/pop-up roof, location of components - GF77.20-P-0001-01T
Electric sliding/pop-up roof, location of components - GF77.20-P-0001-01T
Shown on model 211.0

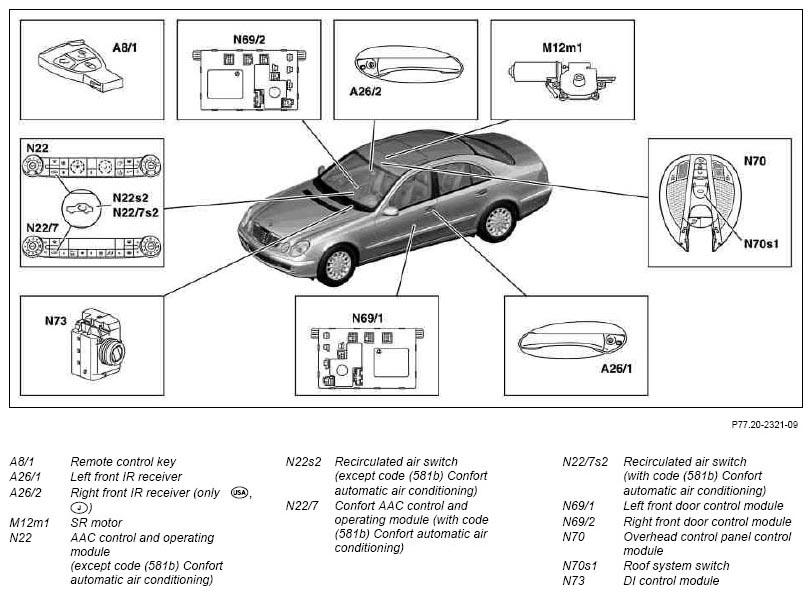

Fig 1: Identifying Electric Sliding/Pop-Up Roof Components
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
