Remove/install stowage box - AR68.20-P-2320T

MODEL 211.0/2/6

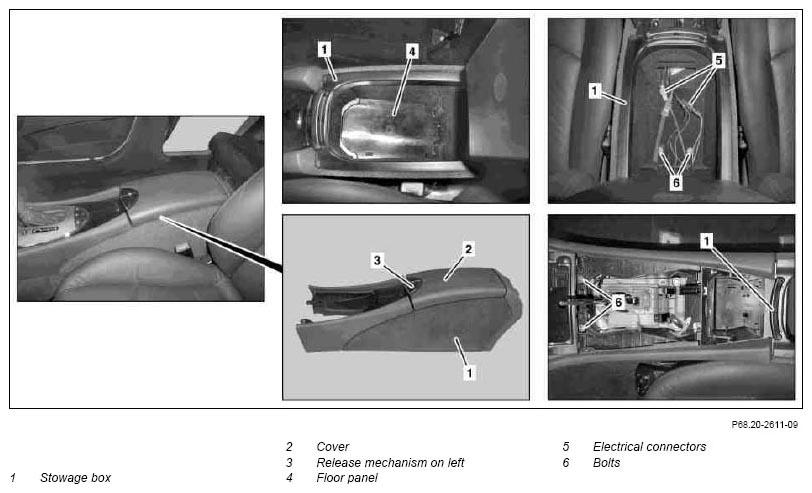

Fig 1: Identifying Stowage Box Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 211.0

	Remove/Install
1	Remove ashtray from front center console		AR68.20-P-2400T
2	Remove cover on center console		AR68.20-P-2350T
3	Open cover (2) of stowage box (1)	Actuate release mechanism on left (3).
4	Remove liner out of stowage box (1)
5	Pull out baseplate (4) using pulling hook	Installation:  Floor panel (4) should catch audibly.	*140589023300
6	Disconnect electrical connectors (5)	Number of electrical connectors (5) according to equipment.
7	Remove bolts (6)
8	Lift stowage box (1) at front and remove
9	Install in the reverse order

Fig 2: Identifying Pulling Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
