Remove/install loading floor for automatic load compartment floor - AR68.80-P-5865T

MODEL 211.2 with CODE (943) Automatically extendable main loading floor

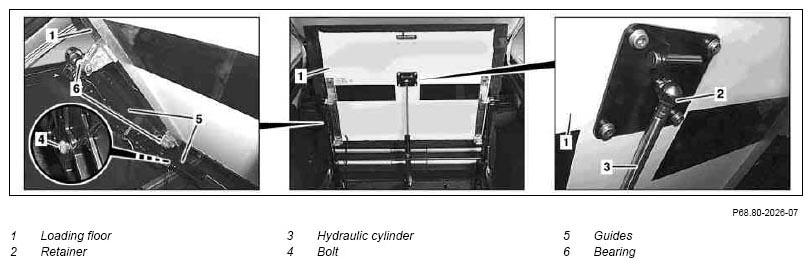

Fig 1: Identifying Automatic Load Compartment Floor Loading Floor Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Loosen paneling for load compartment floor and lower into load compartment	Do not remove the gas-operated struts on the load compartment floor, otherwise the load compartment floor drops toward the bottom.	AR68.80-P-5860T
2	Lift retainer (2) at hydraulic cylinder (3) using a suitable screwdriver and remove hydraulic cylinder (3) at loading floor (1)	Installation:  If necessary move hydraulic cylinder (3) into installation position by actuating loading floor switch.
3	Slacken bolt (4) at load compartment floor until the bearing (6) of the loading floor (1) can be removed from the guides (5)
4	Guide loading floor (1) on left and right out of the guides (5) and take out of load compartment	Helper required
5	Install in the reverse order
6	Carry out function check of load compartment floor
