Retrofit stowage tray below loading floor - AN68.50-P-0005TA

MODEL 211.2## (except 211.276/277) 1# except CODE (669) Spare tire on steel rim except CODE (679) Spare tire in structural wheel design except CODE (844) Rear-facing folding bench seat in load compartment except CODE (943) Automatically extendable main loading floor except CODE (955) Elegance except CODE (954) Avantgarde

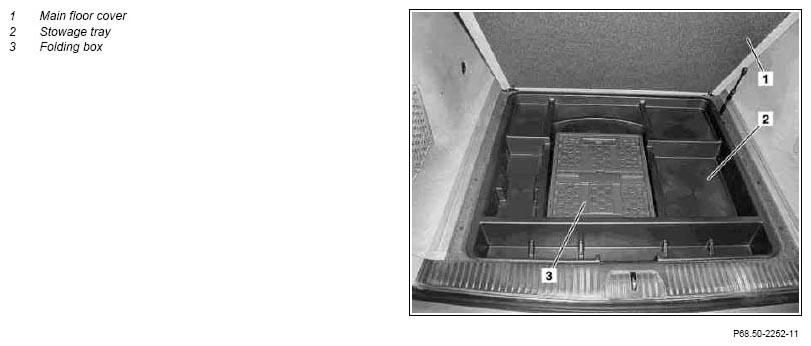

Fig 1: Identifying Main Floor Cover, Stowage Tray And Folding Box

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Install
1	Open liftgate and unhook rear roller blind
2	Open main floor cover (1)
3	Install stowage tray (2) as shown in figure
4	Insert folding box (3) into stowage tray (2)
5	Install remaining parts
6	Document retrofitted equipment using vehicle documentation (VeDoc)	Attach note "Stowage tray retrofitted according to AN68.50-P-0005TA " under field organization texts to KG68
