Retrofit stowage box behind the rear seat backrest - AN68.50-P-0004TA

MODEL 211.2## (except 211.276/277) 1# except CODE (943) Automatically extendable main loading floor except CODE (955) Elegance except CODE (954) Avantgarde

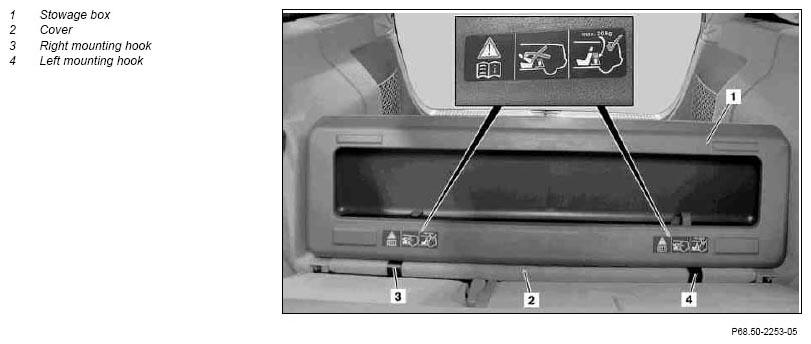

Fig 1: Identifying Stowage Box, Cover & Mounting Hooks

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Install
1	Open liftgate and unhook rear roller blind
2	Fold rear seat cushion and right and left rear seat backrest toward front
3	Hook stowage box (1) into cover (2) with right fastening hook (3) and left fastening hook (4)	The open side of the stowage box (1) should point toward the passenger compartment. See sign on stowage box (1)
4	Fold back rear seat cushion and left and right rear seat backrest and hook in rear sun shade
5	Close liftgate
6	Document retrofitted equipment using vehicle documentation (VeDoc)	Attach note "Stowage box retrofitted according to	AN68.50-P-0004TA " under field organization texts to KG68
