Tailgate locking unit, location/purpose/design - GF68.80-P-4003TA

MODEL 211.2

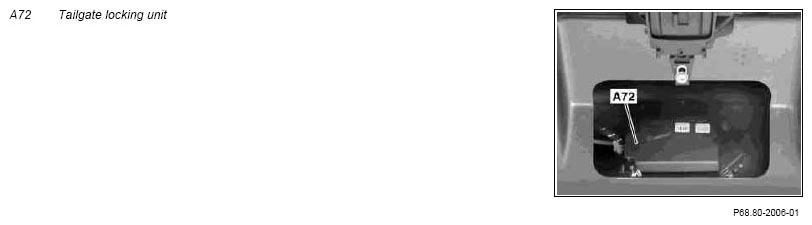

Fig 1: Locating Tailgate Locking Unit
G07274816Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Tailgate locking unit, location The tailgate locking unit (A72)  is located in the tailgate.
Tailgate locking unit, purpose
  • Locking or unlocking tailgate,
  • Tailgate power closing
Locking unit, design The components of the tailgate closing are included in the tailgate closing system (A72)
