Loading floor switch, location/purpose/design - GF68.80-P-4005TA

MODEL 211.2 with CODE (943) Automatically extendable main loading floor

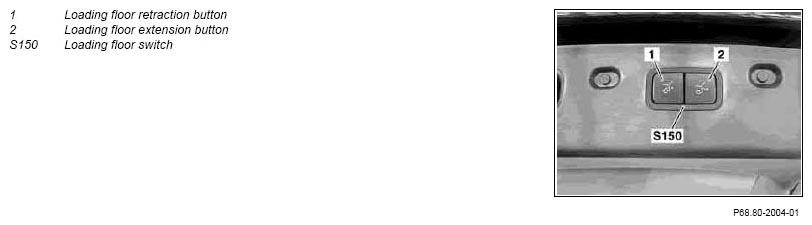

Fig 1: Identifying Loading Floor Switch & Buttons

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Loading floor switch, location	The loading floor switch (S150) is located at the left end of the tailgate
Loading floor switch, purpose	Automatic or manual extension of loading floor Manual retraction of loading floor
Loading floor switch, design	Two buttons in one switch housing Loading floor extension button with double function (manual and automatic operation) LED.
