Loading floor limit switch, location/purpose - GF68.80-P-4004TA

MODEL 211.2 with CODE (943) Automatically extendable main loading floor

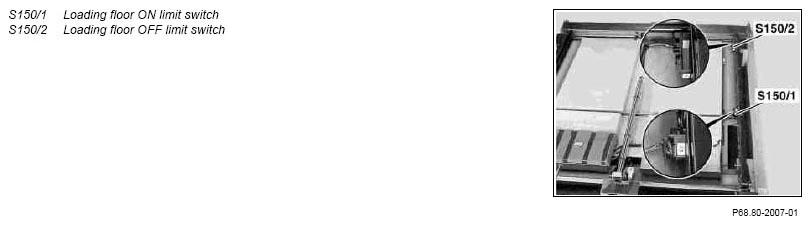

Fig 1: Locating Loading Floor On And Off Limit Switches

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Loading floor limit switch, location	The loading floor ON limit switch (S150/1) and loading floor OFF limit switch (S150/2) are integrated in the loading floor.
Loading floor limit switch, purpose	Determine status of loading floor (extended or retracted) Switch off loading floor hydraulic pump (M69) via loading floor control module (N130).
