Automatic loading floor, location of components - GF68.80-P-0001-01TA

15.03.07

The document has been updated to this date and will no longer be subject to revision.

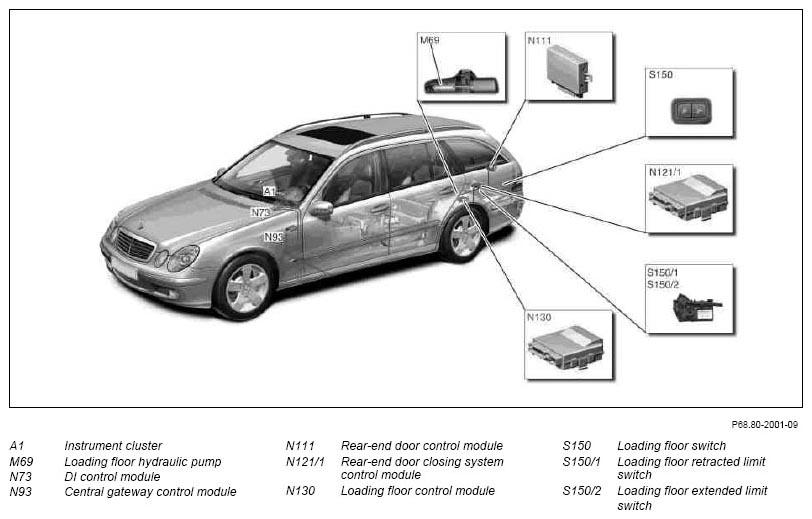

Fig 1: Locating Automatic Loading Floor Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
