Automatic loading floor, block diagram - GF68.80-P-0001-03TA

15.03.07 The document has been updated to this date and will no longer be subject to revision.

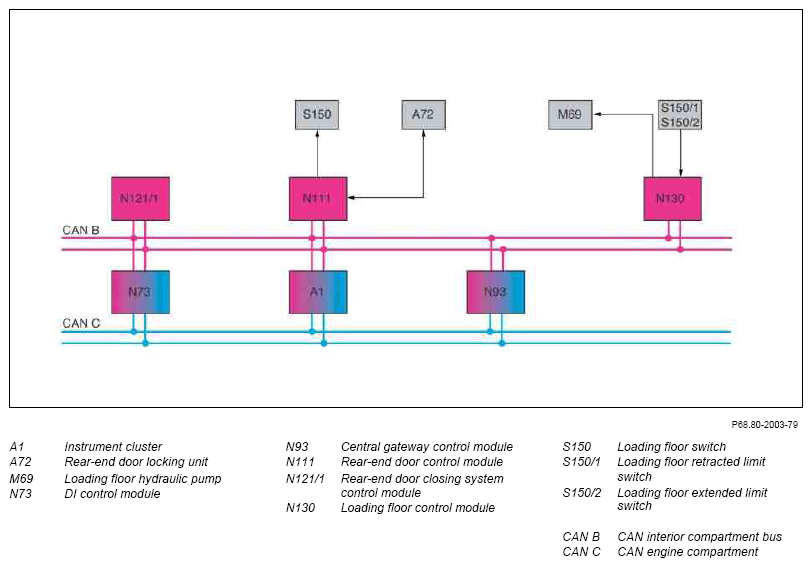

Fig 1: Automatic Loading Floor Block Diagram
G07274810Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
