Converting front bumper - AZ88.00-P-0001-02P

Preparation

1. Remove standard bumper.
2. Remove inner carrier (1), impact damper (2), Parktronic wiring harness (3).

   Remove headlamp (7), headlamp cleaning system cover plate (13) and holder (4).

3. Remove moldings (9), sensors (10), license plate molding (12), grille (11).
4. Mask webs on AMG outer surface (5) with black adhesive foil (8).
5. Insert socket (6) into AMG outer surface (5).

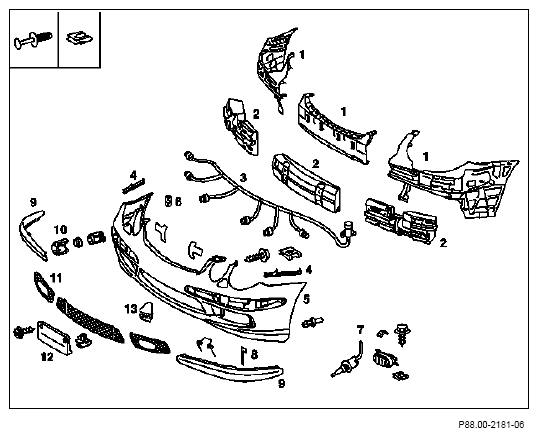

   Fig 1: Exploded View Of Front Bumper

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
6. Cut inner carrier (1) at marked points.

   Assembling

7. Reassemble and install bumper in opposite order

   Use license plate molding AMG.

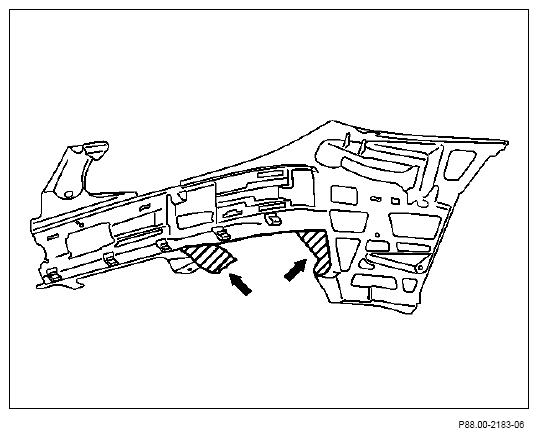

   Fig 2: Locating Inner Carrier Marked Points

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
