Electrically adjustable exterior rearview mirrors, location of components - GF88.79-P-0005-01T

Shown on model 211.2

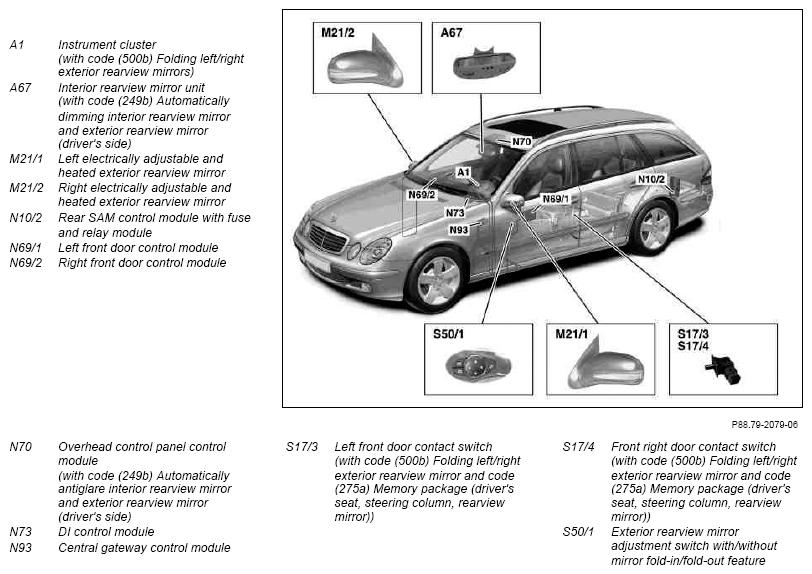

Fig 1: Locating Electrically Adjustable Exterior Rearview Mirrors Components - Shown On Model 211.2

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
