Transmitter key design - GF80.57-P-4101-01T
Structure

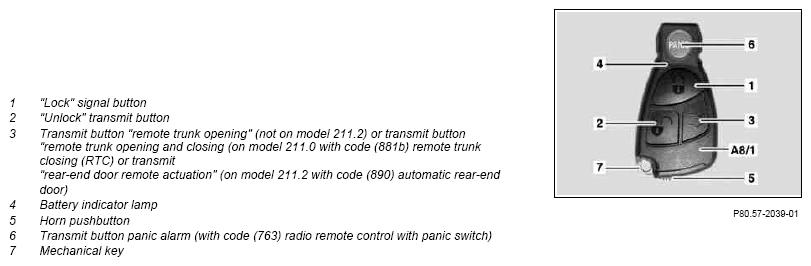

The transmitter key (A8/1) consists of an electronic key and a mechanical key (7). The electronic key includes an FM radio transmitter, an infrared transmitter/receiver, a computer chip and control buttons as well as two button cells. The mechanical key (7) can be unlocked and removed with the pushbutton (5).
