Tilt sensor, location/purpose/design/function - GF80.50-P-4105TA
MODEL 211.2 with code (551a) Anti-theft alarm system (ATA)

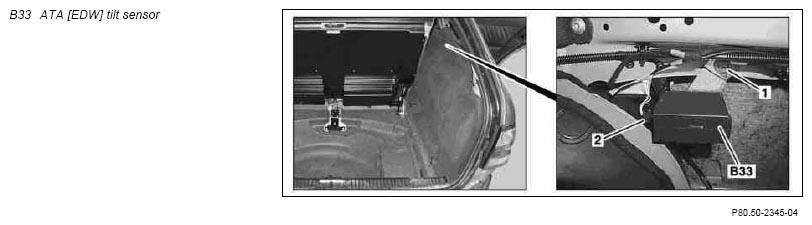

| ATA tilt sensor, location | The ATA tilt sensor (B33) is located below the paneling in the right trunk area | |
| Tilt sensor, purpose | Monitoring position change of vehicle | |
| Tilt sensor, design | The ATA tilt sensor (B33) contains electrodes in an electrolyte (electrically conductive fluid). | |
| ATA tilt sensor, function | GF80.50-P-4105-01T |
