Tailgate remote actuation, location of components - GF80.20-P-0001-01TA
Tailgate remote actuation, location of components - GF80.20-P-0001-01TA
Arrangement of components

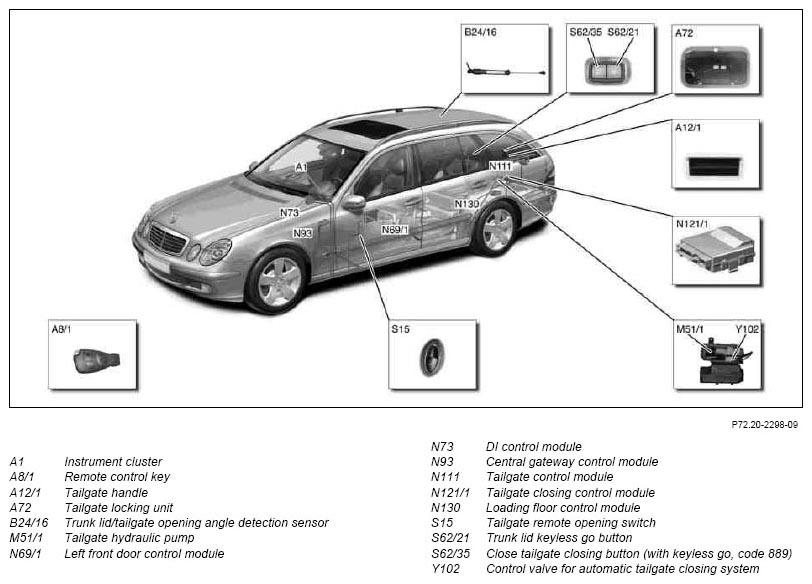

Fig 1: Locating Tailgate Remote Actuation Components
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
