Tailgate remote actuation, block diagram - GF80.20-P-0001-02TA

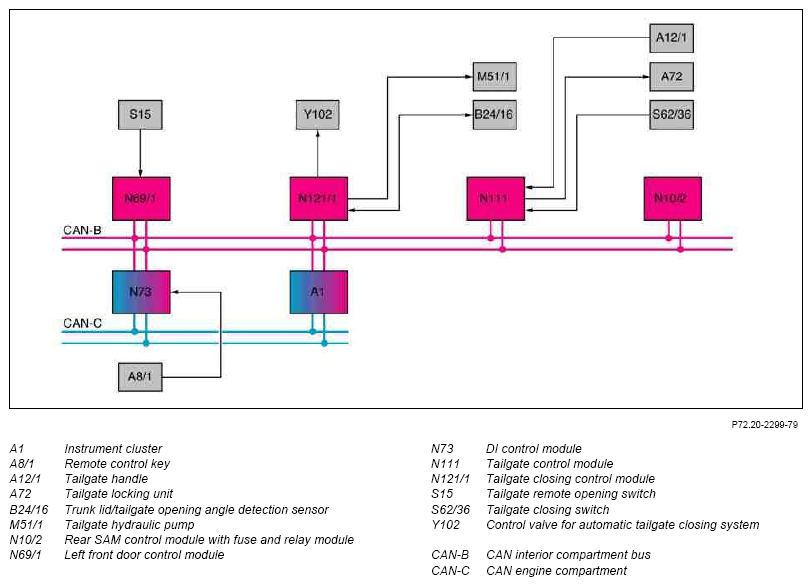

Fig 1: Tailgate Remote Actuation Block Diagram

G07271214

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
